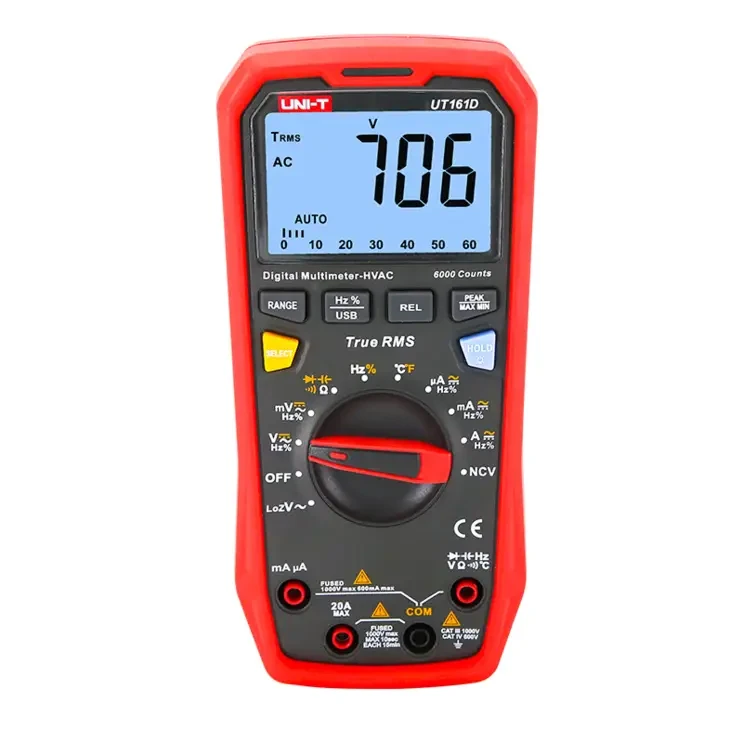

Digital Multimeters, UT161D, 1000V True RMS Digital Multimeter
SKU: UT161D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT161D is a dependable 1000V True RMS digital multi meter intended for precise electrical and electronic measurements, maintenance, and troubleshooting.
It can measure AC/DC voltage up to 1000V, current up to 20A, resistance up to 60MΩ, capacitance up to 60mF, and frequency up to 10MHz.
The UT161D includes a 6000-count display, Loz AC voltage measurement, temperature measurement, peak hold, NCV detection with audible and visual alarms, USB connectivity, data hold, backlight, MAX/MIN and relative measurement functions, and diode and continuity testing.
It is appropriate for professional electrical and electronic testing purposes.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 1000 V.
Measures DC current up to 20 A.
Measures AC current up to 20 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 10 MHz
Measures temperature from -40°C to 1000°C.
Measures duty cycle from 0.1% to 99.9%.
Loz AC voltage measurement function.
Peak hold function.
Non-contact voltage (NCV) detection.
Audible and visual NCV alarm.
Diode testing function.
Continuity testing function.
Data hold function.
MAX/MIN measurement function.
Relative measurement mode.
LCD backlight.
Auto-ranging function.
USB communication interface.
31-segment analogue bar graph.
Input protection function.
Low-battery indication.
Automatic power-off function.
6000-count display.
Compact and portable handheld design.
Suitable for electrical installation and maintenance.
Suitable for electronics testing and troubleshooting.
Suitable for professional electrical measurement and diagnostics.
Specifications:
Meter Type: True RMS Digital Multi meter.
AC Voltage: 1000 V.
AC Voltage Accuracy: ± (1% + 3).
DC Voltage: 1000 V.
DC Voltage Accuracy: ± (0.5% + 3).
AC Current: 20 A.
AC Current Accuracy: ± (1.2% + 5).
DC Current: 20 A.
DC Current Accuracy: ± (1% + 2).
Resistance: 60 MΩ.
Resistance Accuracy: ± (1% + 2).
Capacitance: 60 mF.
Capacitance Accuracy: ± (3% + 5).
Frequency: 10 MHz
Frequency Accuracy: ± (0.1% + 4).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (1% + 3).
Temperature (°F): -40°F to 1832°F.
Temperature Accuracy (°F): ± (1% + 6).
Duty Cycle: 0.1%–99.9%.
Duty Cycle Accuracy: ± (2% + 5).
Display Count: 6000.
Bandwidth: 40 Hz–1 kHz.
LoZ ACV: Yes.
Peak Hold: Yes.
Analogue Bar Graph: 31 segments.
True RMS: Yes.
NCV Detection: Yes.
NCV Alarm: Audible and visual.
Data Hold: Yes.
Backlight: Yes.
MAX/MIN/Relative Mode: Yes.
USB Communication: Yes.
Diode Test: Yes.
Continuity Test: Yes.
Input Protection: Yes.
Power Supply: 4 × 1.5 V R03 batteries.
Product Dimensions: 190 × 90 × 50 mm.
