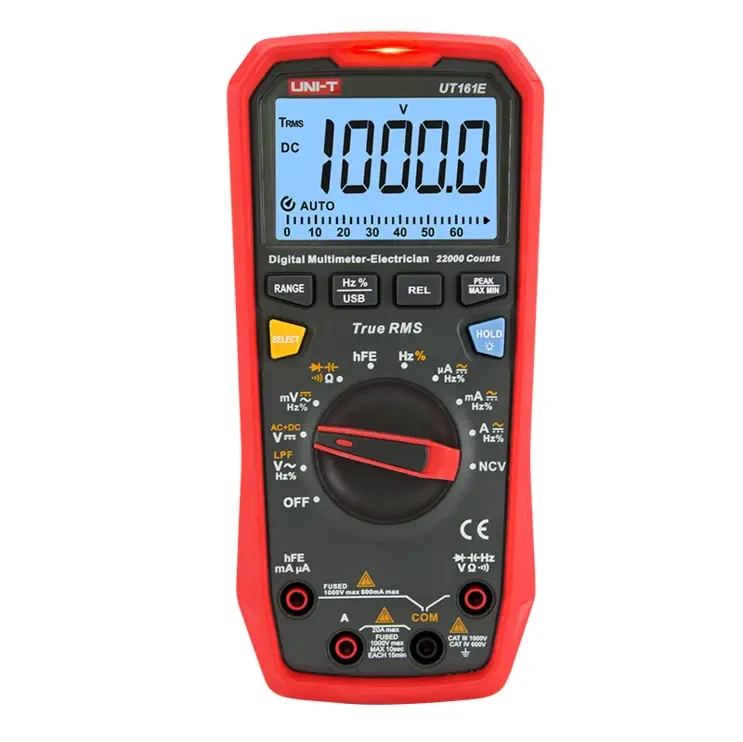

Digital Multimeters, UT161E, 1000V True RMS Digital Multimeter
SKU: UT161E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT161E is a high precision 1000V True RMS digital multi meter intended for professional electrical and electronic measurement, maintenance, and troubleshooting.
It can measure AC/DC voltage up to 1000V, current up to 20A, resistance up to 220MΩ, capacitance up to 220mF, and frequency up to 220MHz.
The UT161E has a high-resolution 22,000-count display, LPF AC voltage measurement, ACV+DCV measurement, peak hold, transistor hFE testing, NCV detection with audible and visual alarms, USB communication, data hold, backlight, MAX/MIN and relative measurement functions, and diode and continuity testing.
It's ideal for high-precision electrical testing, electronics troubleshooting, and professional maintenance tasks.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 1000 V.
Measures DC current up to 20 A.
Measures AC current up to 20 A.
Measures resistance up to 220 MΩ.
Measures capacitance up to 220 mF.
Measures frequency up to 220 MHz
Measures duty cycle from 0.1% to 99.9%.
Low-pass filter (LPF) AC voltage measurement.
ACV+DCV combined measurement function.
Peak hold function.
Transistor hFE measurement function.
Non-contact voltage (NCV) detection.
Audible and visual NCV alarm.
Diode testing function.
Continuity testing function.
Data hold function.
MAX/MIN measurement function.
Relative measurement mode.
LCD backlight.
Auto-ranging function.
USB communication interface.
46-segment analogue bar graph.
Input protection function.
Low-battery indication.
Automatic power-off function.
22,000-count high-resolution display.
Compact and portable handheld design.
Suitable for high-precision electrical measurement.
Suitable for electronics testing and troubleshooting.
Suitable for electrical installation and maintenance.
Suitable for professional electrical measurement and diagnostics.
Specifications:
Meter Type: True RMS Digital Multi meter.
AC Voltage: 1000 V.
AC Voltage Accuracy: ± (0.8% + 10).
DC Voltage: 1000 V.
DC Voltage Accuracy: ± (0.05% + 5).
AC Current: 20 A.
AC Current Accuracy: ± (0.8% + 10).
DC Current: 20 A.
DC Current Accuracy: ± (0.5% + 10).
Resistance: 220 MΩ.
Resistance Accuracy: ± (0.5% + 10).
Capacitance: 220 mF.
Capacitance Accuracy: ± (3% + 5).
Frequency: 220 MHz
Frequency Accuracy: ± (0.01% + 5).
Duty Cycle: 0.1%–99.9%.
Duty Cycle Accuracy: ± (2% + 5).
Display Count: 22,000.
Bandwidth: 40 Hz–10 kHz.
LPF ACV: Yes.
ACV+DCV Measurement: Yes.
Peak Hold: Yes.
Transistor hFE: Yes.
Analogue Bar Graph: 46 segments.
True RMS: Yes.
NCV Detection: Yes.
NCV Alarm: Audible and visual.
Data Hold: Yes.
Backlight: Yes.
MAX/MIN/Relative Mode: Yes.
USB Communication: Yes.
Diode Test: Yes.
Continuity Test: Yes.
Input Protection: Yes.
Power Supply: 4 × 1.5 V R03 batteries.
Product Dimensions: 190 × 90 × 50 mm.
