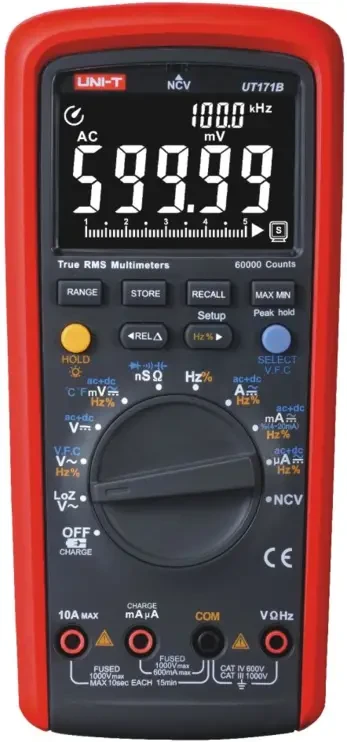

Digital Multimeters, UT171B, 1000V Industrial True RMS Digital Mulimeter
SKU: UT171B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT171B is an industrial grade 1000V True RMS digital multi meter intended for professional electrical measurement, maintenance, and troubleshooting.
It can monitor DC/AC voltage up to 1000V, current up to 10A, resistance up to 60MΩ, capacitance up to 60mF, frequency up to 10MHz, and temperature up to 1000°C.
The UT171B includes a 60000-count display, VFC low-pass filtering, Loz AC voltage measurement, AC+DC measurement, peak hold, 4-20mA loop measurement, USB/Bluetooth communication, data storage, NCV detection, MAX/MIN, relative mode, and rechargeable battery operation.
Its built-in square wave output helps troubleshoot industrial control signals.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 1000 V.
Measures DC current up to 10 A.
Measures AC current up to 10 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 10 MHz
Measures temperature from -40°C to 1000°C.
Measures duty cycle from 0.1% to 99.9%.
Measures 4–20 mA industrial current loops from 0% to 100%.
AC+DC combined measurement function.
VFC low-pass filtering function.
Loz AC voltage measurement for identifying residual or ghost voltage.
Peak hold function.
Non-contact voltage (NCV) detection.
Diode testing function.
Continuity testing with audible buzzer.
Data hold function.
MAX/MIN measurement function.
Relative measurement mode.
USB communication function.
Bluetooth communication capability with optional adaptor.
Data storage for up to 9999 readings.
31-segment analogue bar graph.
LCD backlight.
Mis-plug alarm function.
Low-battery indication.
Automatic power-off function.
Auto ranging and manual ranging functions.
Input protection function.
Built-in square wave output for industrial control signal troubleshooting.
Rechargeable lithium-ion battery.
Compact and durable industrial handheld design.
Suitable for industrial electrical testing and maintenance.
Suitable for industrial control system troubleshooting.
Suitable for electrical and electronic engineers.
Suitable for professional electrical measurement and diagnostics.
Specifications:
Meter Type: Industrial True RMS Digital Multi meter.
DC Voltage: 1000 V.
DC Voltage Accuracy: ± (0.025% + 5).
AC Voltage: 1000 V.
AC Voltage Accuracy: ± (0.4% + 40).
DC Current: 10 A.
DC Current Accuracy: ± (0.15% + 2).
AC Current: 10 A.
AC Current Accuracy: ± (0.75% + 5).
Resistance: 60 MΩ.
Resistance Accuracy: ± (0.05% + 2).
Admittance: 60 nS.
Admittance Accuracy: ± (1% + 10).
Capacitance: 60 mF.
Capacitance Accuracy: ± (2.5% + 40).
Frequency: 10 Hz–10 MHz
Frequency Accuracy: ± (0.01% + 5).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (1% + 30).
Temperature Fahrenheit Range: -40°F to 1832°F.
Temperature Fahrenheit Accuracy: ± (1.5% + 50).
Duty Cycle: 0.1%–99.9%.
Display Count: 60000.
True RMS: Yes.
Bandwidth: 100 kHz.
4–20 mA Loop Measurement: 0–100%.
LoZ AC Voltage: Approximately 3 k Ω.
Diode Test: 3 V.
Continuity Buzzer: Yes.
NCV: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
Relative Mode: Yes.
Data Storage: 9999 readings.
Display Type: EBTN LCD.
Analogue Bar Graph: 31 segments.
LCD Backlight: Yes.
Mis-Plug Alarm: Yes.
Low-Battery Indication: Yes.
Auto Power-Off: Yes.
Input Protection: Yes.
DC Voltage Input Impedance: 1 GΩ.
Power Supply: 7.4 V 2000 Mah rechargeable Li-ion battery.
Display Size: 70.6 × 35.3 mm.
Product Dimensions: 206 × 95 × 55 mm.
