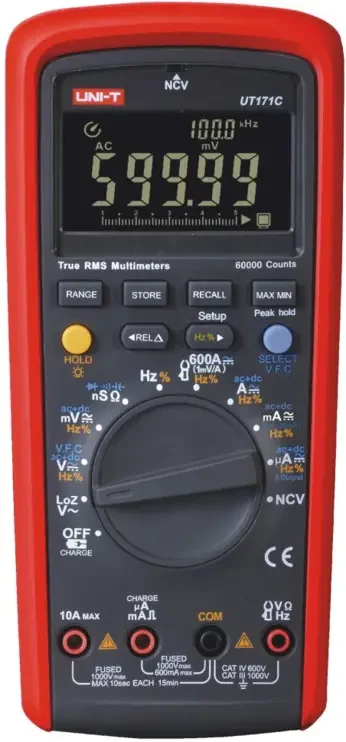

Digital Multimeters, UT171C, 1000V Industrial True RMS Digital Mulimeter
SKU: UT171C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT171C is an industrial grade 1000V digital multi meter intended for professional electrical measurement, maintenance, and troubleshooting.
It can monitor DC/AC voltage up to 1000V, current up to 10A, resistance up to 60MΩ, capacitance up to 60mF, frequency up to 10MHz, and temperature up to 1000°C.
The UT171C comes with a 60000-count OLED display, True RMS measurement, VFC low-pass filtering, Loz AC voltage measurement, AC+DC measurement, peak hold, 4-20mA loop measurement, USB/Bluetooth communication, data storage, NCV detection, MAX/MIN, relative mode, data hold, and a rechargeable lithium-ion battery.
Its OLED display is well-suited to operate in temperatures as low as -30°C.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 1000 V.
Measures DC current up to 10 A.
Measures AC current up to 10 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 10 MHz
Measures temperature from -40°C to 1000°C.
Measures duty cycle from 0.1% to 99.9%.
Measures 4–20 mA industrial current loops from 0% to 100%.
AC+DC combined measurement function.
VFC low-pass filtering function.
LoZ AC voltage measurement for identifying residual or ghost voltage.
Peak hold function.
Non-contact voltage (NCV) detection.
Diode testing function.
Continuity testing with audible buzzer.
Data hold function.
MAX/MIN measurement function.
Relative measurement mode.
USB communication function.
Bluetooth communication capability with optional adaptor.
Data storage for up to 9999 readings.
31-segment analogue bar graph.
OLED display for improved visibility in low-temperature environments.
LCD backlight.
Mis-plug alarm function.
Low-battery indication.
Automatic power-off function.
Auto ranging and manual ranging functions.
Input protection function.
Rechargeable lithium-ion battery.
Compact and durable industrial handheld design.
Suitable for industrial electrical testing and maintenance.
Suitable for industrial control system troubleshooting.
Suitable for professional electrical and electronic measurement.
Suitable for electrical engineers and maintenance technicians.
Specifications:
Meter Type: Industrial True RMS Digital Multi meter.
DC Voltage: 1000 V.
DC Voltage Accuracy: ± (0.025% + 5).
AC Voltage: 1000 V.
AC Voltage Accuracy: ± (0.4% + 40).
DC Current: 10 A.
DC Current Accuracy: ± (0.15% + 2).
AC Current: 10 A.
AC Current Accuracy: ± (0.75% + 5).
Resistance: 60 MΩ.
Resistance Accuracy: ± (0.05% + 2).
Admittance: 60 nS.
Admittance Accuracy: ± (1% + 10).
Capacitance: 60 mF.
Capacitance Accuracy: ± (2.5% + 40).
Frequency: 10 Hz–10 MHz
Frequency Accuracy: ± (0.01% + 5).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (1% + 30).
Temperature Fahrenheit Range: -40°F to 1832°F.
Temperature Fahrenheit Accuracy: ± (1.5% + 50)..
Duty Cycle: 0.1%–99.9%.
Display Count: 60000.
Display Type: OLED.
True RMS: Yes.
Bandwidth: 100 kHz.
4–20 mA Loop Measurement: 0–100%.
LoZ AC Voltage: 3 k Ω.
Diode Test: 3 V.
Continuity Buzzer: Yes.
NCV Detection: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
Relative Mode: Yes.
Data Storage: 9999 readings.
Analogue Bar Graph: 31 segments.
LCD Backlight: Yes.
Mis-Plug Alarm: Yes.
Low-Battery Indication: Yes.
Auto Power-Off: Yes.
Input Protection: Yes.
DC Voltage Input Impedance: 1 GΩ.
Power Supply: 7.4 V 2000 Mah rechargeable Li-ion battery.
Display Size: 70.6 × 35.3 mm.
Product Dimensions: 206 × 95 × 55 mm.
