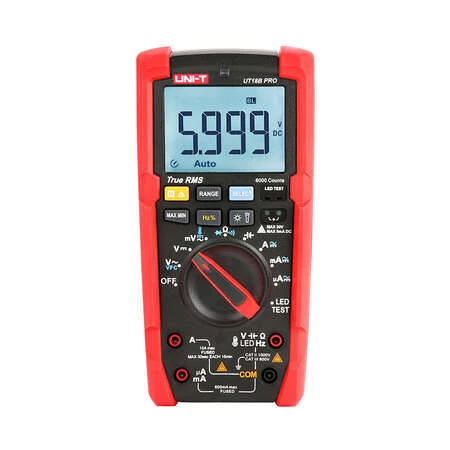

Digital Multimeters, UT18B PRO, 1000V True RMS Digital Multimeters
SKU: UT18B-PRO
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT18B PRO is a dependable, safe, and long-lasting 1000V True RMS digital multi meter built for electrical and electronic testing.
It can detect AC/DC voltage up to 1000V, current up to 10A, resistance up to 60MΩ, capacitance up to 6000μF, and frequency up to 1 MHz
The UT18B PRO has VFC voltage measurement, LED testing, a 6000-count True RMS display, auto/manual ranging, continuity and diode testing, data hold, MAX/MIN and relative measurement functions, an automated backlight, and full-range overload protection.
It also includes 8kV transient voltage protection and is appropriate for electricians and general electrical troubleshooting.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 1000 V.
Measures DC current up to 10 A.
Measures AC current up to 10 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 6000 μF.
Measures frequency up to 1 MHz
Measures duty cycle from 1% to 99%.
Measures VFC voltage up to 600 V.
LED testing function with 12 V test output.
Continuity testing function.
Diode testing function.
Data hold function.
MAX/MIN measurement function.
Relative measurement mode.
Auto ranging and manual ranging functions.
Automatic LCD backlight.
Built-in flashlight.
Low-battery indication.
Automatic power-off function.
Full-range overload protection.
8 kV transient voltage protection.
6000-count display.
1 m drop-test protection.
Compact and durable handheld design.
Suitable for electricians and electrical technicians.
Suitable for electrical maintenance and troubleshooting.
Suitable for professional electrical and electronic testing.
Suitable for general electrical measurement and diagnostics.
Specifications:
Meter Type: True RMS Digital Multi meter.
DC Voltage: Up to 1000 V.
DC Voltage Accuracy: ± (0.5% + 3).
AC Voltage: Up to 1000 V.
AC Voltage Accuracy: ± (1% + 3).
DC Current: Up to 10 A.
DC Current Accuracy: ± (0.8% + 3).
AC Current: Up to 10 A.
AC Current Accuracy: ± (1% + 3).
Resistance: Up to 60 MΩ.
Resistance Accuracy: ± (0.5% + 2).
Capacitance: Up to 6000 μF.
Capacitance Accuracy: ± (2% + 5).
Frequency: 10 Hz–1 MHz
Frequency Accuracy: ± (0.1% + 3).
Duty Cycle: 1%–99%.
Duty Cycle Accuracy: ± (1% + 4).
VFC Voltage: Up to 600 V.
Display Count: 6000.
True RMS: Yes.
LED Test: 12 V.
Auto Range / Manual Range: Yes.
Continuity / Diode Test: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
Relative Mode: Yes.
Auto Backlight: Yes.
Flashlight: Yes.
Low-Battery Indication: Yes.
Auto Power-Off: 15 minutes.
Drop Test: 1 m.
Transient Voltage Protection: 8 kV.
Input Protection: Full-range overload protection.
Power Supply: 2 × 1.5 V AA batteries (LR6).
Product Dimensions: 195 × 95 × 58 mm.
