Digital Multimeters, UT191E, Professional Digital Multimeter
SKU: UT191E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

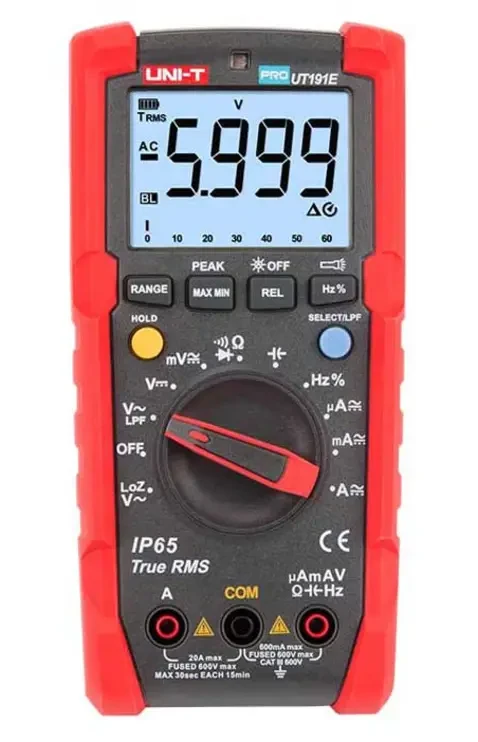

The UT191E is a professional True RMS digital multi meter intended for industrial electrical measurement, maintenance, and troubleshooting.
It can measure DC/AC voltage up to 600V, current up to 20A, resistance up to 60MΩ, capacitance up to 60mF, and frequency up to 1MHz.
The UT191E includes True RMS and peak value measurement, Loz AC voltage measuring, AC voltage low-pass filtering, auto backlight, data hold, MAX/MIN measurement, and a 6000-count display.
Its IP65 rating and 2m drop prote
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Peak value measurement.
Measures DC voltage up to 600 V.
Measures AC voltage up to 600 V.
Measures DC current up to 20 A.
Measures AC current up to 20 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 1 MHz
Measures duty cycle from 0.1% to 99.9%.
Loz AC voltage measurement function.
AC voltage low-pass filter (LPF) function.
Peak AC voltage hold function.
Peak current detection function.
Diode testing function.
Continuity testing with audible buzzer.
Auto ranging and manual ranging functions.
Data hold function.
MAX/MIN measurement function.
Function selection (SELECT) function.
Auto backlight function.
Built-in flashlight.
Low-battery indication.
Automatic power-off function.
31-segment analogue bar graph.
6000-count display.
Measurement setting memory function.
Retains the latest measurement mode after power reset.
IP65-rated protection against dust and water.
2m drop protection.
Compact and durable professional handheld design.
Suitable for industrial electrical measurement and maintenance.
Suitable for electrical troubleshooting in demanding environments.
Suitable for damp and dusty working conditions.
Suitable for professional electrical and electronic testing.
Specifications:
Meter Type: Professional True RMS Digital Multi meter.
DC Voltage: Up to 600 V.
DC Voltage Accuracy: ± (0.5% + 3).
AC Voltage: Up to 600 V.
AC Voltage Accuracy: ± (0.7% + 3).
LoZ AC Voltage: Up to 600 V.
LoZ AC Voltage Accuracy: ± (2% + 5).
AC Voltage LPF: Up to 600 V.
AC Voltage LPF Accuracy: ± (2% + 5).
DC Current: Up to 20 A.
DC Current Accuracy: ± (0.8% + 3).
AC Current: Up to 20 A.
AC Current Accuracy: ± (1% + 3).
Resistance: Up to 60 MΩ.
Resistance Accuracy: ± (0.8% + 2).
Capacitance: Up to 60 mF.
Capacitance Accuracy: ± (3% + 5).
Frequency: 10 Hz–1 MHz
Frequency Accuracy: ± (0.1% + 4).
Duty Cycle: 0.1%–99.9%.
Duty Cycle Accuracy: ± (2% + 5).
ACV Peak Hold Accuracy: ± (2% + 100).
Peak Current Detection Accuracy: ± (3% + 100).
Display Count: 6000.
Sampling Rate: 3 times/second.
Analogue Bar Graph: 31 segments.
True RMS: Yes.
AC Voltage Frequency Response: 45 Hz–400 Hz.
Diode Test: Yes.
Continuity Test: Yes.
Auto Range / Manual Range: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
Auto Power-Off: Yes.
Low-Battery Indication: Yes.
Function Selection: Yes.
Auto Backlight: Yes.
Flashlight: Yes.
Drop Protection: 2 m.
Ingress Protection: IP65.
Power Supply: 9 V battery (6F22).
LCD Size: 58 × 42 mm.
Product Dimensions: 180 × 87 × 59 mm.
