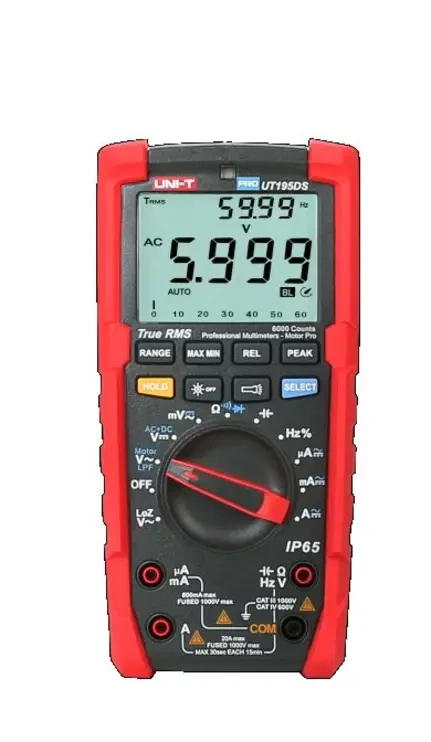

Digital Multimeters, UT195DS, Professional Digital Multimeter
SKU: UT195DS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT195DS is a professional handheld digital multi meter intended for industrial electrical measurements, maintenance, and troubleshooting.
True RMS measurement is available for DC/AC voltage up to 600V, current up to 20A, resistance up to 60MΩ, capacitance up to 60mF, and frequency up to 1MHz.
The UT195DS is IP65-rated and has a drop resistance of 2m, making it ideal for tough industrial conditions.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 600 V.
Measures AC voltage up to 600 V.
Measures DC current up to 20 A.
Measures AC current up to 20 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 1 MHz
Measures duty cycle.
Loz AC voltage measurement function.
AC voltage low-pass filter (LPF) function.
Peak value measurement function.
Diode testing function.
Continuity testing with audible buzzer.
Auto ranging and manual ranging functions.
Data hold function.
MAX/MIN measurement function.
Relative measurement mode.
Auto backlight function.
Low-battery indication.
Automatic power-off function.
6000-count display.
31-segment analogue bar graph.
IP65-rated protection against dust and water.
2m drop protection.
Compact and durable professional handheld design.
Suitable for industrial electrical measurement and maintenance.
Suitable for electrical troubleshooting in demanding environments.
Suitable for professional electrical and electronic testing.
Suitable for general electrical measurement and diagnostics.
Specifications:
Meter Type: Professional Digital Multi meter.
Measurement Type: True RMS.
DC Voltage: Up to 600 V.
AC Voltage: Up to 600 V.
DC Current: Up to 20 A.
AC Current: Up to 20 A.
Resistance: Up to 60 MΩ.
Capacitance: Up to 60 mF.
Frequency: Up to 1 MHz
Duty Cycle: Yes.
LoZ AC Voltage: Yes.
AC Voltage Low-Pass Filter: Yes.
Peak Value Measurement: Yes.
Display Count: 6000.
Analogue Bar Graph: 31 segments.
True RMS: Yes.
Diode Test: Yes.
Continuity Test: Yes.
Auto Range / Manual Range: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
Relative Mode: Yes.
Auto Backlight: Yes.
Low-Battery Indication: Yes.
Auto Power-Off: Yes.
Ingress Protection: IP65.
Drop Protection: 2 m.
Power Supply: Battery operated.
Applications: Industrial electrical testing, electrical maintenance, troubleshooting, electronics testing and general electrical diagnostics.
