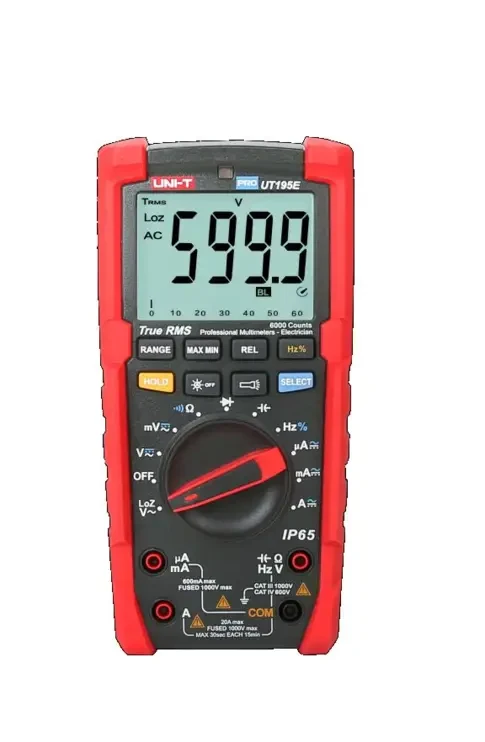

Digital Multimeters, UT195E, Professional Digital Multimeter
SKU: UT195E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT195E is a professional True RMS digital multi meter intended for industrial electrical measurement, maintenance, troubleshooting, and repairs.
It can measure DC and AC voltages up to 1000V, AC/DC currents up to 20A, resistance up to 60MΩ, capacitance up to 60mF, and frequency up to 10MHz.
The UT195E has a 6000-count LCD, a 31-segment analogue bar graph, Loz voltage measurement to identify ghost voltage, True RMS measurement, auto backlight, flashlight, data hold, MAX/MIN, and function selection.
Its IP65 rating, 2m drop protection, and CAT III 1000V / CAT IV 600V safety rating qualify it for challenging professional environments.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 1000 V.
Measures DC current up to 20 A.
Measures AC current up to 20 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency from 60 Hz to 10 MHz
Measures duty cycle from 0.1% to 99.9%.
Loz voltage measurement function for detecting ghost voltage.
AC voltage frequency response up to 5 kHz.
Diode testing function.
Continuity testing with audible buzzer.
Auto ranging and manual ranging functions.
Data hold function.
MAX/MIN measurement function.
Function selection function.
Auto LCD backlight controlled by a light sensor.
Built-in flashlight.
Low-battery indication.
Automatic power-off function.
31-segment analogue bar graph.
6000-count display.
Measurement setting memory function.
IP65-rated protection against dust and water.
2 m drop protection.
Compact and durable professional handheld design.
Suitable for industrial electrical measurement and maintenance.
Suitable for motor drive and factory equipment troubleshooting.
Suitable for electrical distribution testing and repair.
Suitable for professional electrical and electronic testing.
Specifications:
Meter Type: Professional True RMS Digital Multi meter.
DC Voltage: Up to 1000 V.
DC Voltage Accuracy: ± (0.2% + 5).
AC Voltage: Up to 1000 V.
AC Voltage Accuracy: ± (1% + 3).
LoZ AC Voltage: Up to 600 V.
LoZ AC Voltage Accuracy: ± (2% + 3).
DC Current: Up to 20 A.
DC Current Accuracy: ± (0.8% + 3).
AC Current: Up to 20 A.
AC Current Accuracy: ± (1% + 3).
Resistance: Up to 60 MΩ.
Resistance Accuracy: ± (0.8% + 2).
Capacitance: Up to 60 mF.
Capacitance Accuracy: ± (3% + 5).
Frequency: 60 Hz–10 MHz
Frequency Accuracy: ± (0.1% + 4).
Duty Cycle: 0.1%–99.9%.
Duty Cycle Accuracy: ± (2% + 5).
Display Count: 6000.
Display Interface: Single LCD.
Measurement Sampling Rate: 3 times/second.
Analogue Bar Sampling Rate: 10 times/second.
Analogue Bar Graph: 31 segments.
True RMS: Yes.
AC Voltage Frequency Response: 45 Hz–400 Hz.
AC Current Frequency Response: 45 Hz–400 Hz.
Diode/Continuity Test: 3.5 V.
Auto/Manual Range: Yes.
Continuity Buzzer: Yes.
Low-Battery Indication: Yes.
Data Hold: Yes.
Auto Power-Off: Yes.
MAX/MIN: Yes.
Function Selection: Yes.
Flashlight: Yes.
Auto Backlight: Yes.
IP Rating: IP65.
Drop Protection: 2 m.
Power Supply: 9 V battery.
LCD Size: 66 × 51 mm.
Product Dimensions: 195 × 95 × 58 mm.
