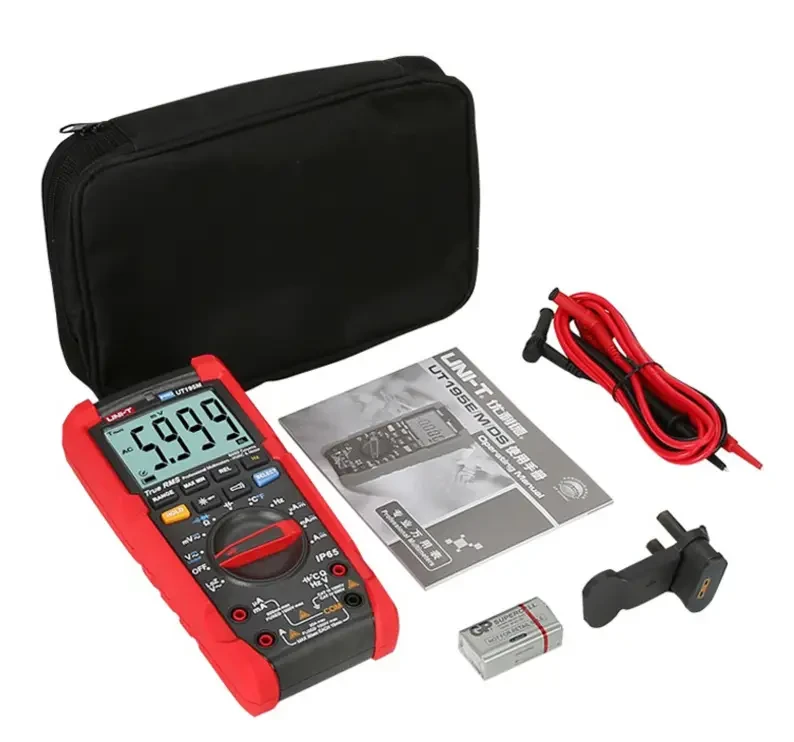

Digital Multimeters, UT195EX-KIT, Professional Digital Multimeters
SKU: UT195EX-KIT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT195EX-KIT is a professional True RMS digital multi meter kit with an intrinsically safe EX version intended for electricians and industrial use.
It can measure AC/DC voltage up to 1000V DC and 750V AC, current up to 20A, resistance up to 60MΩ, capacitance up to 60mF, and frequency up to 10MHz.
The UT195EX-KIT has IP65 water and dust resistance, a 2m drop rating, Loz AC voltage measurement, auto-ranging, data hold, MAX/MIN, relative measurement, auto backlight, flashlight, and a 6000-count display.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Intrinsically safe EX version.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 750 V.
Measures AC/DC current up to 20 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 10 MHz
Measures duty cycle.
Loz AC voltage measurement function.
Diode testing function.
Continuity testing function.
Data hold function.
MAX/MIN measurement function.
Relative measurement function.
Auto-ranging function.
Manual ranging function.
Function selection (SELECT) function.
Automatic power-off function.
Automatic backlight function with ON/OFF control.
Built-in flashlight.
31-segment analogue bar graph.
6000-count display.
Low-battery indication.
IP65-rated water and dust protection.
2m drop protection.
Full professional electrical measurement capabilities.
Suitable for professional electricians.
Suitable for industrial electrical maintenance and troubleshooting.
Suitable for electrical testing in demanding working environments.
Supplied as a kit with additional items.
Specifications:
Meter Type: Professional True RMS Digital Multi meter Kit.
DC Voltage: Up to 1000 V.
AC Voltage: Up to 750 V.
LoZ AC Voltage: Up to 600 V.
LoZ Input Impedance: 300 k Ω.
AC/DC Current: Up to 20 A.
Resistance: Up to 60 MΩ.
Capacitance: Up to 60 mF.
Frequency: Up to 10 MHz
Duty Cycle: Yes.
True RMS: Yes.
Display Count: 6000.
Analogue Bar Graph: 31 segments.
Auto Range: Yes.
Manual Range: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
Relative Measurement: Yes.
SELECT Function: Yes.
Diode Test: Yes.
Continuity Test: Yes.
Auto Power-Off: Yes.
Auto Backlight: Yes.
Flashlight: Yes.
Low-Battery Indication: Yes.
Ingress Protection: IP65.
Drop Protection: 2 m.
Applications: Professional electrical testing, electrician applications, industrial maintenance, electrical troubleshooting and testing in demanding environments.
