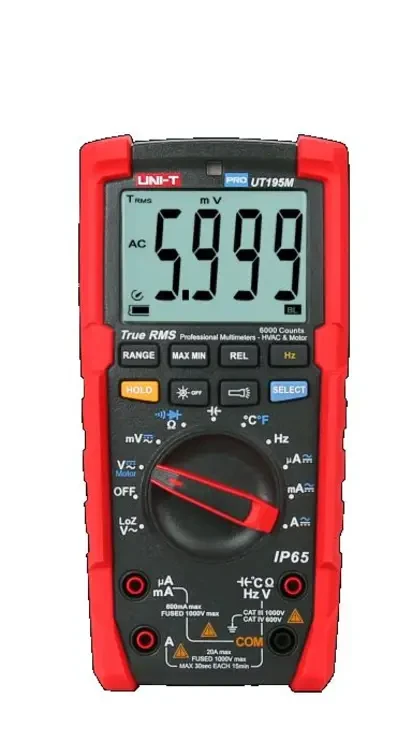

Digital Multimeters, UT195M, Professional Digital Multimeter
SKU: UT195M
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT195M is a professional True RMS digital multi meter intended for HVAC, motor service, and industrial electrical applications.
It can monitor DC voltage up to 1000V, AC voltage up to 750V, AC/DC current up to 20A, resistance up to 60MΩ, capacitance up to 60mF, frequency up to 40MHz, and temperature up to 1000°C.
The UT195M has Loz AC voltage measurement, three-phase motor phase sequence measurement, True RMS technology, auto-ranging, data hold, MAX/MIN, relative measurement, auto backlight, and an
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 750 V.
Measures AC current up to 20 A.
Measures DC current up to 20 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 40 MHz
Measures temperature from -40°C to 1000°C.
Measures temperature from -40°F to 1832°F.
Measures duty cycle.
LoZ AC voltage measurement function for detecting ghost voltage.
Three-phase motor phase sequence measurement function.
Diode testing function.
Continuity testing function with audible buzzer.
Data hold function.
MAX/MIN measurement function.
Relative measurement function.
Auto-ranging function.
Manual ranging function.
Function selection (SELECT) function.
Automatic power-off function.
Automatic backlight with ON/OFF control.
Built-in flashlight.
31-segment analogue bar graph.
6000-count display.
Low-battery indication.
IP65-rated water and dust protection.
2m drop protection.
Suitable for HVAC and motor service applications.
Suitable for industrial electrical maintenance and troubleshooting.
Suitable for professional electricians and electrical technicians.
Suitable for electrical testing and diagnostics in demanding environments.
Specifications:
Meter Type: Professional True RMS Digital Multi meter.
Application: HVAC and Motor Service.
DC Voltage: Up to 1000 V.
DC Voltage Accuracy: ± (0.2% + 5).
AC Voltage: Up to 750 V.
AC Voltage Accuracy: ± (1% + 3).
LoZ AC Voltage: Up to 600 V.
LoZ AC Voltage Accuracy: ± (2% + 3).
DC Current: Up to 20 A.
DC Current Accuracy: ± (0.8% + 3).
AC Current: Up to 20 A.
AC Current Accuracy: ± (1% + 3).
Resistance: Up to 60 MΩ.
Resistance Accuracy: ± (0.8% + 2).
Capacitance: Up to 60 mF.
Capacitance Accuracy: ± (3% + 5).
Frequency: 60 Hz–40 MHz
Frequency Accuracy: ± (0.1% + 4).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (1.5% + 4).
Temperature Fahrenheit Range: -40°F to 1832°F.
Temperature Fahrenheit Accuracy: ± (2% + 5).
Display Count: 6000.
Display Interface: Single LCD.
Measurement Sampling Rate: 3 times/second.
True RMS: Yes.
AC Voltage Frequency Response: 45 Hz–1 kHz.
AC Current Frequency Response: 45 Hz–1 kHz.
Three-Phase Motor Sequence Test: Up to 600 V.
Diode Test: 3 V.
Continuity Test: Yes.
Auto Range / Manual Range: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
Relative Measurement: Yes.
Function Selection: Yes.
Auto Power-Off: Yes.
Auto Backlight: Yes.
Flashlight: Yes.
Low-Battery Indication: Yes.
Ingress Protection: IP65.
Drop Protection: 2 m.
Power Supply: 9 V battery.
LCD Size: 66 × 51 mm.
Product Dimensions: 195 × 95 × 58 mm.
