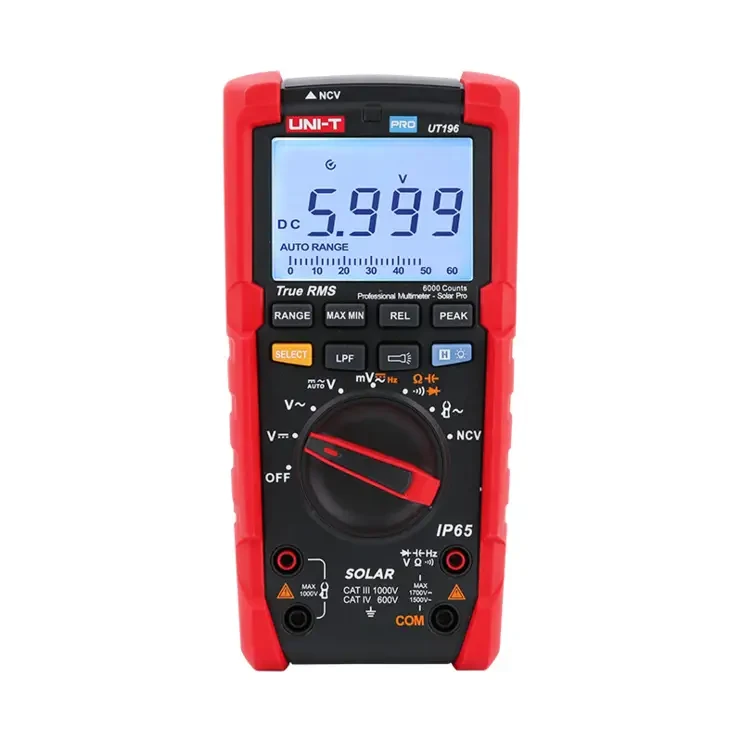

Digital Multimeters, UT196, Professional Multimeter - Solar Pro
SKU: UT196
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT196 is a professional 1700V DC True RMS digital multi meter intended for solar power system maintenance and other high-voltage applications.
It can measure DC voltages up to 1700V and AC voltages up to 1500V, making it ideal for solar arrays, wind power systems, and other high-voltage electrical installations.
With an external current clamp sensor, the UT196 can monitor AC currents up to 3000A.
The meter has IP65 protection, 2m drop resistance, and CAT III 1000V/CAT IV 600V safety standards, making it ideal for use in harsh outdoor and industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1700 V.
Measures AC voltage up to 1500 V.
Measures AC current up to 3000 A when used with an external current clamp sensor.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 1 MHz
Measures high voltages for solar array and wind power applications.
Low-pass filter (LPF) function.
Low impedance (Loz) mode.
Automatic AC/DC voltage identification.
Dual display function.
Non-contact voltage (NCV) detection.
Peak hold function.
MAX/MIN measurement function.
Relative measurement mode.
Data hold function.
Diode testing function.
Continuity testing function.
Auto-ranging function.
Analog bar graph.
Built-in flashlight.
Bright LCD backlight.
Audible and visual alarm indication.
Low-battery indication.
Automatic power-off function.
IP65-rated protection against dust and water.
2m drop protection.
CAT III 1000V and CAT IV 600V safety rating.
Suitable for solar power system maintenance.
Suitable for high-voltage DC measurement.
Suitable for wind power system testing.
Suitable for rugged outdoor electrical environments.
Suitable for professional electrical maintenance and troubleshooting.
Specifications:
Meter Type: Professional True RMS Digital Multi meter.
Application: Solar Pro / High-Voltage Electrical Testing.
DC Voltage: Up to 1700 V.
DC Voltage Accuracy: ± (0.2% + 5).
AC Voltage: Up to 1500 V.
AC Voltage Accuracy: ± (0.8% + 3).
Frequency: Up to 1 MHz
Frequency Accuracy: ± (0.08% + 4).
Resistance: Up to 60 MΩ.
Resistance Accuracy: ± (0.8% + 2).
Capacitance: Up to 60 mF.
Capacitance Accuracy: ± (1.9% + 5).
External Clamp Current Measurement: Up to 3000 A AC.
Display Count: 6000.
True RMS: Yes.
Dual Display: Yes.
Auto Range: Yes.
NCV Detection: Yes.
Diode Test: Yes.
Continuity Test: Yes.
Relative Mode: Yes.
MAX/MIN: Yes.
Peak Hold: Yes.
Low-Pass Filter: Yes.
Low Impedance Mode: Yes.
Audible and Visual Indication: Yes.
Data Hold: Yes.
Analog Bar Graph: Yes.
Auto Power-Off: 15 minutes.
Flashlight: Yes.
Backlight: Yes.
Low-Battery Indication: Yes.
Ingress Protection: IP65.
Drop Test: 2 m.
Power Supply: 9V battery.
Product Dimensions: 195 × 95 × 58 mm.
