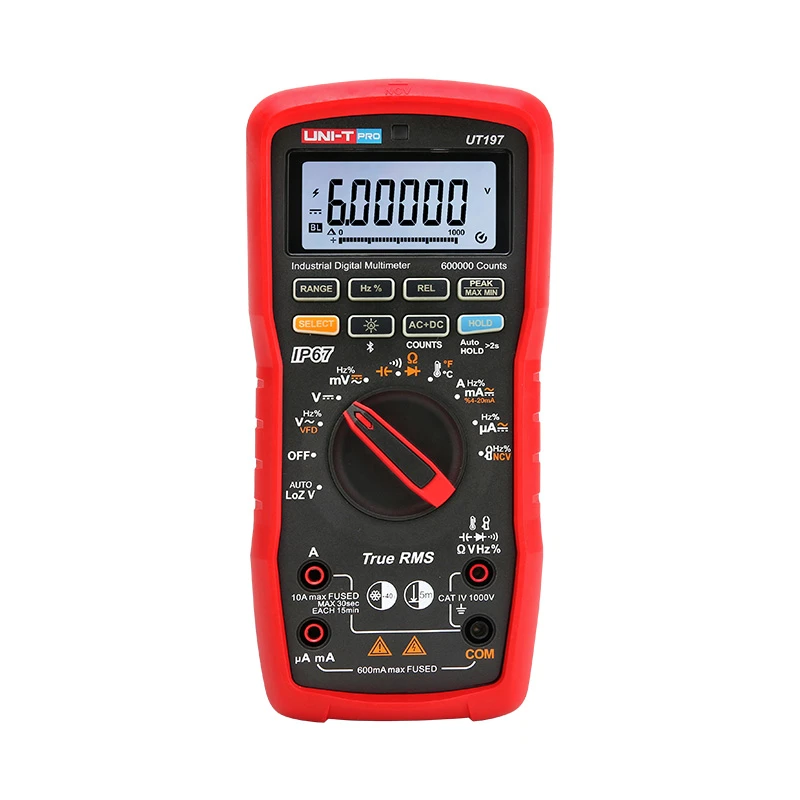

Digital Multimeters, UT197, Industrial Digital Multimeter

Features: True RMS measurement. Measures DC voltage up to 1000 V. Measures AC voltage up to 1000 V. Measures DC current up to 10 A. Measures AC current up to 10 A. Measures AC+DC current. Supports external current measurement up to 1000 A using the optional UT-CS07 current sensor. Measures resistance up to 60 MΩ. Measures capacitance up to 60 mF. Measures frequency from 10 Hz to 1 MHz Measures temperature from -40°C to 1000°C. Measures duty cycle from 10% to 90%. 600,000-count high-resolution display for DC voltage measurement. 9,999-count frequency display. Automatic AC/DC voltage identification. VFD anti-interference startup mode. VFC function for variable-frequency drive measurements. Non-contact voltage (NCV) detection. Peak capture function. MAX/MIN measurement function. Manual and automatic data hold function. High-voltage alarm function. Mis wired probe alarm function. Input terminal visible alarm. Continuity testing with audible buzzer. Diode testing function. Auto backlight function. Low-battery indication. Automatic power-off function. Bluetooth communication function. Supports UNI-T Smart Test APP for recording and analysing measurement results. 12 kV pulse protection. 12 kV anti-EMC interference protection. IP67-rated dust and water protection. 5m drop protection. CAT IV 1000V safety rating. Suitable for power construction and electrical equipment maintenance. Suitable for petrochemical and industrial engineering applications. Suitable for HVAC testing and maintenance. Suitable for new-energy and outdoor electrical applications. Suitable for factory and laboratory electrical testing.   Specifications: Meter Type: Industrial True RMS Digital Multi meter. DC Voltage: 600.00 mV / 6.0000 V / 60.000 V / 600.00 V / 1000.0 V. DC Voltage Accuracy, 60,000 Count: ± (0.03% + 5). DC Voltage Accuracy, 600,000 Count: ± (0.015% + 10). AC Voltage: 600.00 mV / 6.0000 V / 60.000 V / 600.00 V / 1000.0 V. AC Voltage Accuracy: ± (0.3% + 20). Auto AC/DC Voltage: 600.0 V. Auto AC/DC Voltage Accuracy: ± (0.8% + 5). AC+DC Voltage: 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V. AC+DC Voltage Accuracy: ± (0.8% + 5). DC Current: 600.00 μA / 6000.0 μA / 60.000 mA / 600.00 mA / 6.0000 A / 10.000 A. DC Current Accuracy: ± (0.1% + 20). AC Current: 600.00 μA / 6000.0 μA / 60.000 mA / 600.00 mA / 6.000 A / 10.000 A. AC Current Accuracy: ± (0.5% + 50). AC+DC Current: 600.0 μA / 6000 μA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A. AC+DC Current Accuracy: ± (1.0% + 5). External Current, DC: 100.0 A / 1000 A using optional UT-CS07 sensor. External Current, AC: 100.0 A / 1000 A using optional UT-CS07 sensor. External Current Accuracy: ± (1.5% + 5). Resistance: 600.00 Ω / 6.0000 k Ω / 60.000 k Ω / 600.00 k Ω / 6.0000 MΩ / 60.00 MΩ. Resistance Accuracy: ± (0.07% + 2). Capacitance: 60.00 nF / 600.0 nF / 6.000 μF / 60.00 μF / 600.0 μF / 6.000 mF / 60.00 mF. Capacitance Accuracy: ± (0.8% + 3). Frequency: 10 Hz–1 MHz Frequency Accuracy: ± (0.002% + 5). Temperature: -40°C to 1000°C. Temperature Accuracy: ± (1.0% + 15). Temperature Fahrenheit Range: -40°F to 1832°F. Temperature Fahrenheit Accuracy: ± (1.0% + 30). Duty Cycle: 10%–90% at 10 Hz–10 kHz. Duty Cycle Accuracy: ± (1.2% + 5). Display Count: 600,000 for DCV / 9,999 for frequency. True RMS: Yes. Diode Test: 3.0 V. NCV Detection: Yes. Continuity Buzzer: Yes. Data Hold: Manual / Automatic. Peak Capture: Yes. MAX/MIN: Yes. High Voltage Alarm: Yes. Mis wired Probe Alarm: Yes. Overrange Indicator: Yes. Auto Backlight: Yes. Auto Power-Off: 15 minutes. Bluetooth Communication: Yes. Input Protection: 12 kV pulse protection and anti-EMC interference. Ingress Protection: IP67. Drop Protection: 5 m. Power Supply: 2 × 1.5 V AA batteries. Product Dimensions: 220 × 104 × 67 mm.
