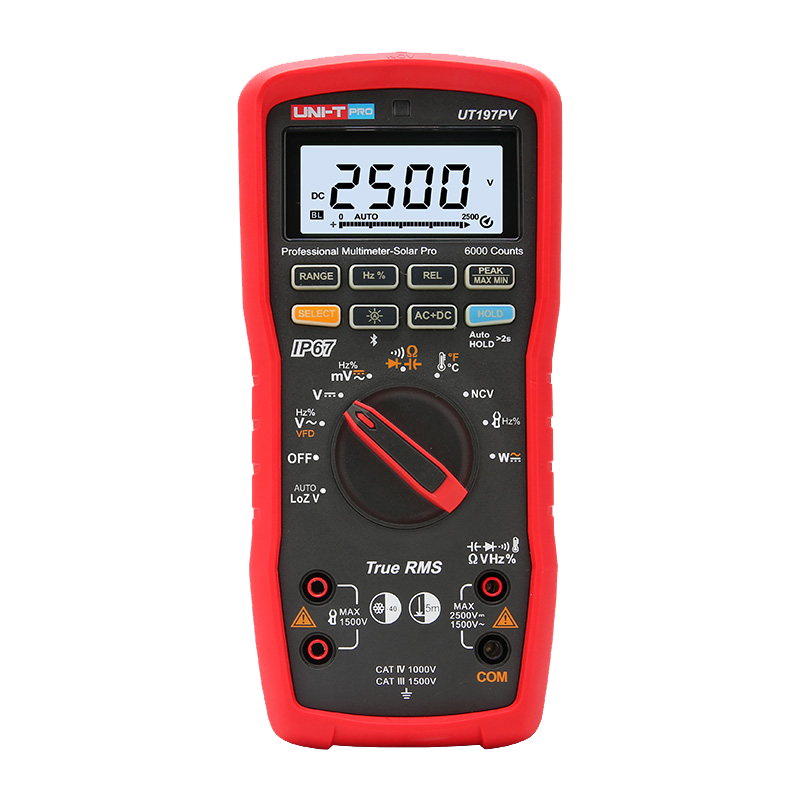

Digital Multimeters, UT197PV, Professional Multimeter-solar Pro

Features: True RMS measurement with a 6000-count display. Measures DC voltage up to 2500 V. Measures AC voltage up to 1500 V. Measures VFD output voltage up to 1500 V. Measures AC/DC current up to 1000 A with the optional UT-CS07 external clamp sensor. Measures AC/DC power using the optional UT-CS07 external clamp sensor. Measures resistance up to 60 MΩ. Measures capacitance up to 60 mF. Measures frequency up to 999.9 kHz. Measures temperature from -40°C to 1000°C. Measures duty cycle from 10% to 90%. Supports AC+DC voltage measurement. Supports Auto LoZ voltage measurement. Supports VFD measurement for variable-frequency drive outputs. Non-contact voltage (NCV) detection function. Peak measurement function. MAX/MIN measurement function. Relative measurement function. Data hold function. Auto-ranging function. High-voltage alarm function. High-voltage overload alarm function. Multifunctional protection system. Automatic power-off function. Low-battery indication. Automatic backlight function. 33-segment analogue bar graph. Bluetooth APP connectivity for remote measurement and data monitoring. IP67-rated protection against dust and water. 5m drop protection. Designed for harsh outdoor environments, including damp and sandy conditions. Suitable for solar photovoltaic system testing and maintenance. Suitable for high-voltage DC measurement. Suitable for power engineering and electrical maintenance. Suitable for HVAC and new-energy applications. Suitable for professional electrical troubleshooting and diagnostics.   Specifications: Meter Type: Professional True RMS Digital Multi meter. Application: Solar Pro / High-Voltage PV and Industrial Testing. DC Voltage: 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 2500 V. DC Voltage Accuracy: ± (0.2% + 5) for standard ranges; ± (1.0% + 5) at 2500 V. AC Voltage: 600.00 mV / 6.000 V / 60.00 V / 600.0 V / 1500 V. AC Voltage Accuracy: ± (0.8% + 3) at 45–500 Hz; ± (1.8% + 3) at 500 Hz–1 kHz. VFD AC Voltage: 600.0 V / 1500 V. VFD Accuracy: ± (2.0% + 5). Auto LoZ Voltage: 600.0 V / 1500 V. Auto LoZ Accuracy: ± (1.5% + 5) at 600 V; ± (1.8% + 5) at 1500 V. AC+DC Voltage: Up to 1500 V. AC+DC Voltage Accuracy: ± (1.5% + 5) at lower frequencies. Resistance: 600.0 Ω to 60.00 MΩ. Resistance Accuracy: ± (0.5% + 5) to ± (2.5% + 5), depending on range. Capacitance: 60.00 nF to 60.00 mF. Capacitance Accuracy: ±3.0% to ±10.0%, depending on range. Frequency: 99.99 Hz to 999.9 kHz. Frequency Accuracy: ± (0.02% + 5). Duty Cycle: 10 Hz–10 kHz / 10%–90%. Duty Cycle Accuracy: ± (2.0% + 30). Temperature: -40°C to 1000°C. Temperature Accuracy: ± (1.0% + 30). Temperature Fahrenheit Range: -40°F to 1832°F. Temperature Fahrenheit Accuracy: ± (1.0% + 60). External Clamp DC Current: 100 A / 1000 A using optional UT-CS07. External Clamp AC Current: 100 A / 1000 A using optional UT-CS07. External Clamp DC Current Accuracy: ± (0.8% + 5). External Clamp AC Current Accuracy: ± (1.0% + 5). AC Power with 100A Clamp Range: Up to 150 kW active power / 150 kVA apparent power. AC Power with 1000A Clamp Range: Up to 1500 kW active power / 1500 kVA apparent power. DC Power with 100A Clamp Range: Up to 250 kVA. DC Power with 1000A Clamp Range: Up to 2500 kVA. Display Count: 6000. Analogue Bar Graph: 33 segments. True RMS: Yes. NCV: Yes. Auto Range: Yes. Relative Mode: Yes. Peak: Yes. MAX/MIN: Yes. Data Hold: Yes. High-Voltage Alarm: Yes. High-Voltage Overload Alarm: Yes. Low-Battery Indication: Yes. Auto Power-Off: Yes. Multifunctional Protection: Yes. Bluetooth APP: Yes. Backlight: Automatic. Ingress Protection: IP67. Drop Protection: 5 m. Working Temperature: -40°C to 55°C. Power Supply: 3 × 1.5 V AA batteries. Product Dimensions: 220 × 104 × 67 mm.
