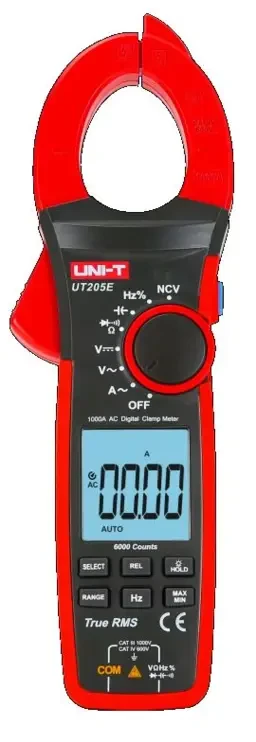

Digital Clamp Meters, UT205E, 1000A 42mm Jaw Size Digital Clamp Meter AC DC Voltage Detector
SKU: UT205E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT205E True RMS Digital Clamp Meter is a professional handheld electrical testing equipment that can measure AC current up to 1000 A without disconnecting or interrupting the circuit.
Its 42 mm jaw aperture can handle larger conductors, and True RMS technology ensures accurate measurements on non-linear loads.
The UT205E also monitors AC/DC voltage, resistance, capacitance, and frequency and includes NCV detection, data hold, MAX/MIN functions, auto-ranging, and a built-in lighting.
It's ideal for electrical installation, industrial maintenance, power system testing, and electrical troubleshooting.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures AC current up to 1000 A.
Measures AC voltage up to 1000 V.
Measures DC voltage up to 1000 V.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency from 10 Hz to 1 MHz
Measures duty cycle from 10% to 90%.
Non-contact voltage (NCV) detection.
NCV multi-segment display with audible and visual alarm.
Continuity testing function.
Diode testing function.
Auto-ranging function.
Data hold function.
MAX/MIN measurement function.
Auto backlight function.
Built-in flashlight.
Low-battery indication.
Automatic power-off function.
6000-count display.
42 mm jaw opening.
Full-range overload protection.
CAT III 1000 V / CAT IV 600 V safety rating.
Compact and portable handheld design.
Suitable for electrical installation and maintenance.
Suitable for industrial electrical troubleshooting.
Suitable for power system testing and fault finding.
Specifications:
Product Type: True RMS Digital AC Clamp Meter.
AC Current Measurement Range: 1000 A.
AC Current Accuracy: ± (2%+5).
AC Current Frequency Response: 50 Hz–60 Hz.
AC Voltage Measurement Range: 1000 V.
AC Voltage Accuracy: ± (1.2%+3).
AC Voltage Frequency Response: 40 Hz–400 Hz.
DC Voltage Measurement Range: 1000 V.
DC Voltage Accuracy: ± (0.5%+5).
Resistance Measurement Range: 60 MΩ.
Resistance Accuracy: ± (1%+2).
Capacitance Measurement Range: 60 mF.
Capacitance Accuracy: ± (4%+5).
Frequency Measurement Range: 10 Hz–1 MHz
Frequency Accuracy: ± (0.1%+3).
Duty Cycle Measurement Range: 10%–90%.
Duty Cycle Accuracy: ± (2.6%+7).
True RMS: Yes.
NCV Detection: Yes.
NCV Multi-Segment Display: Yes.
Continuity Test: Yes.
Diode Test: Yes.
Auto Range: Yes.
Data Hold: Yes.
MAX/MIN Function: Yes.
Auto Backlight: Yes.
Flashlight: Yes.
Low Battery Indication: Yes.
Automatic Power-Off: Yes.
Display Count: 6000.
Jaw Opening: 42 mm.
Safety Rating: CAT III 1000 V / CAT IV 600 V.
Power Supply: 3 × 1.5 V R03 batteries.
Product Dimensions: 272 × 81 × 43.5 mm.
Application: AC current measurement, voltage testing, electrical installation, industrial maintenance, power system testing and troubleshooting.
