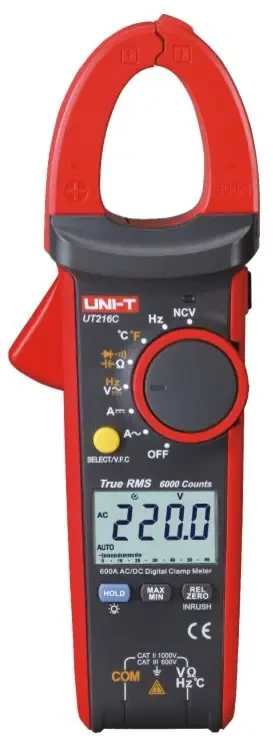

Digital Clamp Meters, UT216C, 600A True RMS Clamp Meter AC/DC
SKU: UT216C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A 600A True RMS digital clamp meter, the UT216C is intended for precise electrical system measurement and troubleshooting.
In addition to AC/DC voltage, resistance, capacitance, frequency, and temperature, it monitors AC and DC current up to 600A.
The UT216C is appropriate for electrical maintenance, installation, industrial applications, and general electrical testing because to its 30mm jaw opening, True RMS technology, inrush current measurement, and non-contact voltage (NCV) detection.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures AC current up to 600 A.
Measures DC current up to 600 A.
Non-invasive AC/DC current measurement using clamp jaws.
Measures AC voltage.
Measures DC voltage.
Measures resistance.
Measures capacitance.
Measures frequency.
Measures temperature.
Non-contact voltage (NCV) detection.
Inrush current measurement.
Variable Frequency Control (V.F.C.) function.
Continuity testing function.
Diode testing function.
Data hold function.
Zero/Relative measurement function.
MAX/MIN measurement function.
61-segment analogue bar graph.
LCD backlight.
Built-in LED flashlight.
Low-battery indication.
Input protection.
Automatic power-off function.
Auto-ranging function.
6000-count LCD display.
30 mm maximum jaw opening.
Compact and portable handheld design.
Suitable for electrical installation and maintenance.
Suitable for industrial electrical troubleshooting.
Suitable for electrical system testing and fault finding.
Suitable for general electrical testing and diagnostics.
Specifications:
AC Current: 60 A / 600 A.
AC Current Accuracy: ± (2.5% + 5).
AC Current Frequency Response: 40 Hz–400 Hz.
DC Current: 60 A / 600 A.
DC Current Accuracy: ± (2.5% + 5).
AC Voltage: 6 V / 60 V / 600 V / 750 V.
AC Voltage Accuracy: ± (1.2% + 5).
AC Voltage Frequency Response: 40 Hz–400 Hz.
DC Voltage: 600 mV / 6 V / 60 V / 600 V / 1000 V.
DC Voltage Accuracy: ± (0.8% + 1).
Resistance: Up to 60 MΩ.
Resistance Accuracy: ± (1% + 2).
Capacitance: Up to 60 Mf.
Capacitance Accuracy: ± (4% + 5).
Frequency: 10 Hz–1 MHz
Frequency Accuracy: ± (0.1% + 4).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (2% + 10).
Display Count: 6000.
Jaw Opening: 30 mm.
True RMS: Yes.
Diode Test: 3.0 V.
Continuity Test: Audible buzzer.
Power Supply: 3 × 1.5 V R03 batteries.
Dimensions: 220 × 75 × 40 mm.
