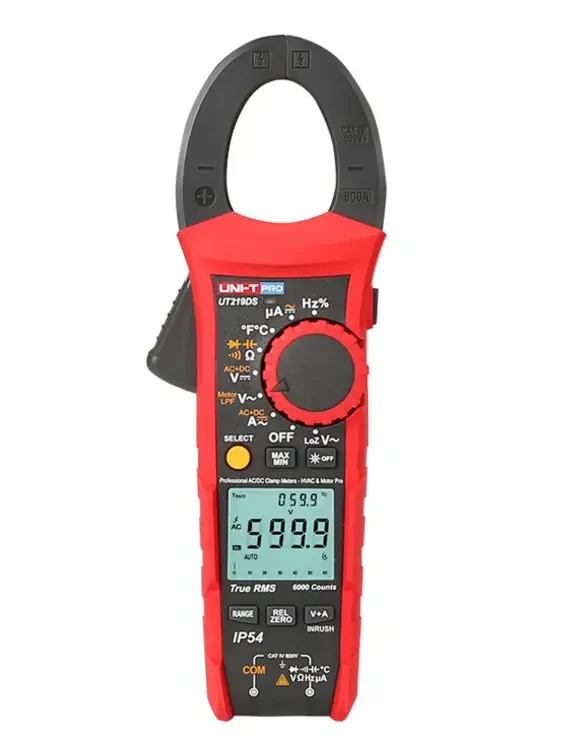

Digital Clamp Meters, UT219DS, 600A True RMS Digital Clamp Meter AC/DC PRO
SKU: UT219DS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Professional electricians, HVAC/R specialists, and motor service professionals should use the UT219DS, a 600A True RMS AC/DC digital clamp meter.
It offers precise measurements of resistance, capacitance, frequency, duty cycle, temperature, AC and DC voltage up to 1000V, and AC and DC current up to 600A.
The UT219DS is appropriate for demanding industrial and electrical testing environments because of its dual LCD display that can display voltage and current simultaneously, low-pass filter for variable-frequency drive (VFD) applications, 3-phase motor sequence testing, IP54 protection, and 2m drop-proof design.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures AC current up to 600 A.
Measures DC current up to 600 A.
Non-invasive AC/DC current measurement using clamp jaws.
Measures AC voltage up to 1000 V.
Measures DC voltage up to 1000 V.
Measures low-impedance AC voltage (LoZ ACV) up to 600 V.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 40 MHz.
Measures duty cycle from 0.1% to 99.9%.
Measures temperature from -40°C to 1000°C.
3-phase motor sequence testing up to 600 V.
Low-pass filter for VFD applications.
Simultaneous voltage and current display (V+A).
Auto and manual ranging functions.
ZERO mode.
MAX/MIN measurement function.
Data hold and relative measurement modes.
Function selection (SELECT) function.
Auto backlight and built-in flashlight.
Low-battery indication.
Automatic power-off function.
31-segment analogue bar graph.
Dual LCD display.
IP54-rated protection.
Withstands a 2 m drop test.
Input impedance of ≥10 MΩ.
Compact and durable professional handheld design.
Suitable for professional electricians and electrical technicians.
Suitable for HVAC/R and motor service applications.
Suitable for industrial electrical troubleshooting and maintenance.
Suitable for VFD and variable-frequency drive testing.
Suitable for electrical installation, testing and diagnostics.
Specifications:
AC Current: 600 A.
AC Current Accuracy: ± (1.8% + 6).
AC Current Frequency Response: 40 Hz–400 Hz.
DC Current: 600 A.
DC Current Accuracy: ± (1.8% + 6).
AC Voltage: 1000 V.
AC Voltage Accuracy: ± (1% + 6).
AC Voltage Frequency Response: 40 Hz–1 kHz.
DC Voltage: 1000 V.
DC Voltage Accuracy: ± (0.6% + 3).
LoZ AC Voltage: 600 V.
LoZ AC Voltage Accuracy: ± (2.5% + 6).
Resistance: 60 MΩ.
Resistance Accuracy: ± (1% + 3).
Capacitance: 60 mF.
Capacitance Accuracy: ± (4% + 7).
Frequency: 600 Hz–40 MHz
Frequency Accuracy: ± (0.1% + 6).
Duty Cycle: 0.1%–99.9%.
Duty Cycle Accuracy: ± (2.6% + 7).
Temperature: -40°C–1000°C / -40°F–1832°F.
Temperature Accuracy: ± (2% + 5°C) / ± (2% + 9°F).
Display Count: 6000.
Display Type: Dual LCD.
Jaw Opening: 33 mm.
True RMS: Yes.
Diode Test: 3 V.
Analogue Bar Graph: 31 segments.
Measurement Sampling Rate: 5 times/s.
Analogue Bar Sampling Rate: 20 times/s.
Power Supply: 3 × 1.5 V R03 batteries.
Display Size: 35 mm × 31 mm.
Product Dimensions: 234.6 mm × 82 mm × 47 mm.
IP Rating: IP54.
Drop Resistance: 2 m.
