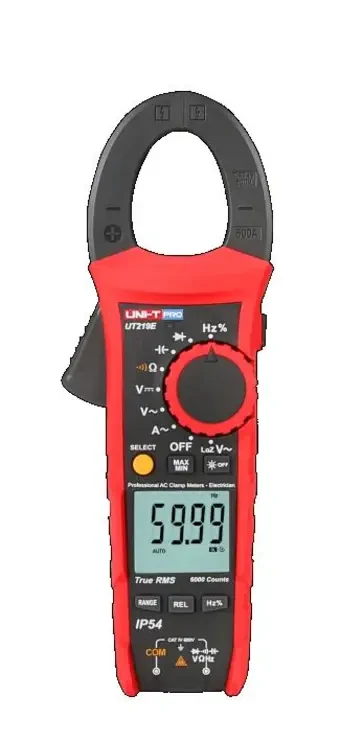

Digital Clamp Meters, UT219E, 600A True RMS Digital Clamp Meter AC PRO
SKU: UT219E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A professional 600A True RMS AC digital clamp meter, the UT219E is made for precise electrical measurement and troubleshooting.
It can monitor AC voltage up to 1000V, AC current up to 600A, resistance, capacitance, frequency, and temperature.
The UT219E has a 33mm jaw opening, IP54 protection, inrush current monitoring, non-contact voltage (NCV) detection, and a low-pass filter for variable frequency drive (VFD) applications.
Professional electricians, electrical maintenance, industrial troubleshooting, and general electrical testing can all benefit from its sturdy build and extensive measurement capabilities.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures AC current up to 600 A.
Non-invasive AC current measurement using clamp jaws.
Measures AC voltage up to 1000 V.
Measures resistance.
Measures capacitance.
Measures frequency.
Measures temperature.
Low-pass filter for VFD applications.
Inrush current measurement.
Non-contact voltage (NCV) detection.
Continuity testing function.
Diode testing function.
Data hold function.
MAX/MIN measurement function.
Relative measurement function.
Auto ranging and manual ranging functions.
LCD backlight.
Built-in flashlight.
Low-battery indication.
Automatic power-off function.
Input protection.
31-segment analogue bar graph.
6000-count LCD display.
33 mm maximum jaw opening.
IP54-rated protection.
Compact and durable professional handheld design.
Suitable for professional electrical installation and maintenance.
Suitable for VFD and variable-frequency drive testing.
Suitable for industrial electrical troubleshooting.
Suitable for electrical system testing and fault finding.
Suitable for general electrical testing and diagnostics.
Specifications:
AC Current: 600 A.
AC Current Accuracy: ± (1.8% + 6).
AC Current Frequency Response: 40 Hz–400 Hz.
AC Voltage: 1000 V.
AC Voltage Accuracy: ± (1% + 6).
AC Voltage Frequency Response: 40 Hz–1 kHz.
Resistance: 60 MΩ.
Resistance Accuracy: ± (1% + 3).
Capacitance: 60 mF.
Capacitance Accuracy: ± (4% + 7).
Frequency: 600 Hz–40 MHz
Frequency Accuracy: ± (0.1% + 6).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (2% + 5°C).
Display Count: 6000.
Display Type: LCD.
Jaw Opening: 33 mm.
True RMS: Yes.
Inrush Current: Yes.
Low-Pass Filter: Yes.
NCV Detection: Yes.
Diode Test: 3 V.
Analogue Bar Graph: 31 segments.
Power Supply: 3 × 1.5 V R03 batteries.
IP Rating: IP54.
Drop Resistance: 2 m.
