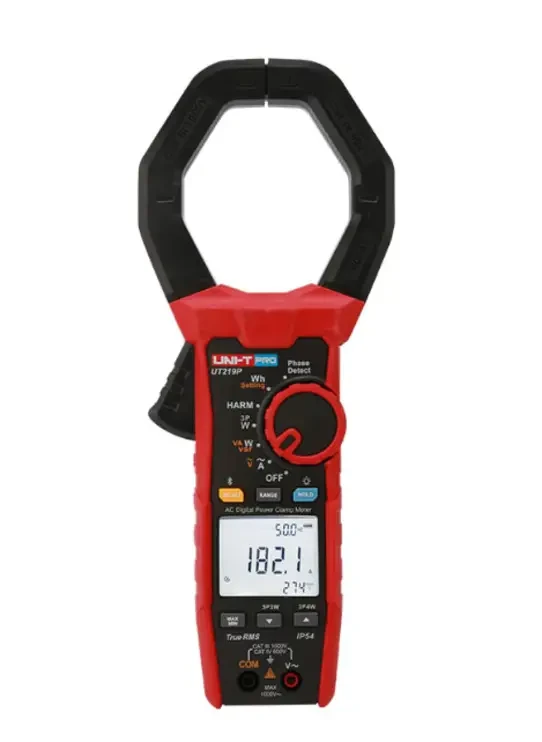

Digital Clamp Meters, UT219P, AC Digital Power Clamp Meter
SKU: UT219P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Combining the features of a digital ammeter and power meter, the UT219P is a smart, portable AC digital power and harmonics clamp meter.
AC current and voltage, single-phase and three-phase power, power factor, phase angle, phase sequence, and harmonics may all be measured with it.
The UT219P is appropriate for photovoltaic power plants, motor manufacturing, electrical equipment, distribution cabinets, and power quality and harmonic measurement applications due to its True RMS measurement, Bluetooth 5.0 connectivity, large 75 mm jaw opening, and CAT III 1000 V and CAT IV 600 V safety ratings.
Buy currently uses Select Automation shop pricing and checkout.
Features:
1000 A AC current measurement.
1000 V AC voltage measurement.
True RMS measurement.
AC and DC positive and negative peak measurement.
Single-phase power measurement.
Three-phase power measurement up to 3000 kW.
Harmonic measurement up to the 32nd harmonic.
Total Harmonic Distortion (THD) measurement.
Power factor measurement.
Phase angle measurement.
Phase sequence detection.
Phase detection from 80 V to 1000 V.
Large 75 mm clamp jaw opening.
Bluetooth 5.0 connectivity for wireless data transmission and monitoring.
9999-count LCD display.
Displays four measurement results simultaneously.
Overload indication.
High-voltage indication.
High-voltage overload warning.
Low-battery indication.
Data hold function.
MAX/MIN measurement function.
Automatic power-off function.
Suitable for photovoltaic power station testing.
Suitable for motor manufacturing and testing.
Suitable for electrical equipment power measurement.
Suitable for distribution cabinet testing.
Suitable for power and harmonic measurement applications.
Suitable for residential, commercial and industrial electrical systems.
Specifications:
AC Current: 1000 A.
AC Current Accuracy: ± (1.5% + 3).
AC Voltage: 1000 V.
AC Voltage Accuracy: ± (0.7% + 3).
Single-Phase Power: 1000 kW.
Single-Phase Power Accuracy: ± (1.7% + 5).
Three-Phase, Three-Wire Power: 1732 kW.
Three-Phase, Four-Wire Power: 3000 kW.
Power Frequency: 15 Hz–1000 Hz.
Power Frequency Accuracy: ± (0.3% + 3).
Phase Angle: -180° to 179.9°.
Phase Angle Accuracy at 15 Hz–40 Hz: ±5°.
Phase Angle Accuracy at 40 Hz–70 Hz: ±3°.
Phase Angle Accuracy at 70 Hz–1000 Hz: ±5°.
Power Factor: -1 to 1.
Peak Measurement: AC/DC Positive and Negative Peak.
Harmonic Measurement: Up to 32nd Harmonic.
Jaw Opening: 75 mm.
Phase Detection: 80 V–1000 V.
Display Type: LCD.
Display Count: 9999.
Display Mode: 4 measurement results simultaneously.
Bluetooth: Bluetooth 5.0.
True RMS: Yes.
Overload Indication: Yes.
High-Voltage Indication: Yes.
High-Voltage Overload Warning: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
Auto Power-Off: 15 minutes.
Safety Rating: CAT III 1000 V / CAT IV 600 V.
IP Rating: IP54.
