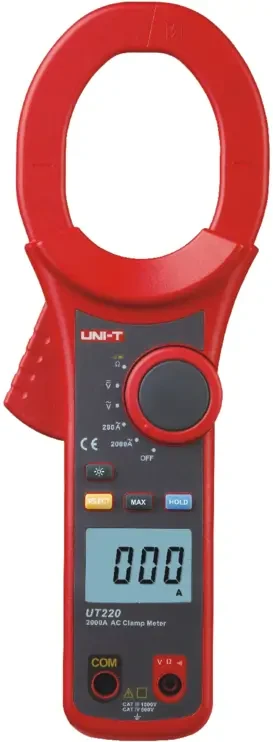

Digital Clamp Meters, UT220, 2000A Digital Clamp Meter AC
SKU: UT220
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Large AC currents in electrical systems can be measured with the UT220, a high-current 2000A AC digital clamp meter.
It can measure wires with huge diameters without disrupting the circuit because to its big 63mm jaw opening.
In addition to measuring AC/DC voltage, resistance, frequency, and temperature, the UT220 has a built-in flashlight, data hold, MAX/MIN functions, True RMS measurement, and inrush current measurement.
Large electrical equipment, power distribution systems, industrial electrical maintenance, and general electrical troubleshooting can all benefit from its sturdy architecture.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Measures AC current up to 2000 A.
Non-invasive AC current measurement using clamp jaws.
True RMS measurement.
Measures AC voltage.
Measures DC voltage.
Measures resistance.
Measures frequency.
Measures temperature.
Inrush current measurement.
Non-contact voltage (NCV) detection.
Continuity testing function.
Diode testing function.
Data hold function.
MAX/MIN measurement function.
Zero/Relative measurement function.
Auto-ranging function.
LCD backlight.
Built-in flashlight.
Low-battery indication.
Automatic power-off function.
Overload protection.
Large 63 mm maximum jaw opening.
6000-count LCD display.
Compact and durable handheld design.
Suitable for measuring high-current electrical systems.
Suitable for industrial electrical maintenance and troubleshooting.
Suitable for power distribution and electrical equipment testing.
Suitable for electrical installation and general diagnostics.
Specifications:
AC Current: 200 A / 2000 A.
AC Current Accuracy: ± (2% + 5).
AC Current Frequency Response: 50 Hz–60 Hz.
AC Voltage: 600 V / 750 V.
AC Voltage Accuracy: ± (1.2% + 5).
DC Voltage: 600 V / 1000 V.
DC Voltage Accuracy: ± (0.8% + 2).
Resistance: 60 k Ω.
Resistance Accuracy: ± (1% + 2).
Frequency: 10 Hz–10 MHz
Frequency Accuracy: ± (0.1% + 3).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (1% + 3).
Display Count: 6000.
Jaw Opening: 63 mm.
True RMS: Yes.
Inrush Current: Yes.
NCV Detection: Yes.
Diode Test: Yes.
Continuity Test: Audible buzzer.
Power Supply: 3 × 1.5 V AAA batteries.
Dimensions: Approx. 280 × 105 × 50 mm.
