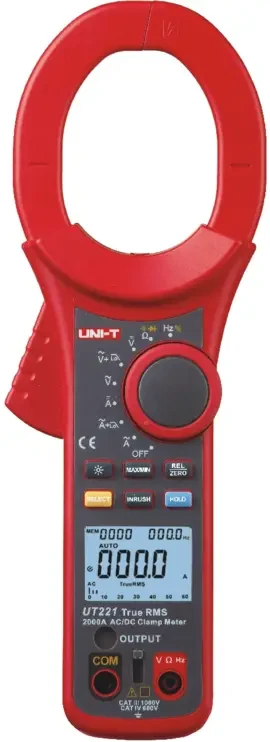

Digital Clamp Meters, UT221, 2000A Digital Clamp Meter AC/DC
SKU: UT221
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
High-current electrical systems can be measured and troubleshooted with the UT221, a high-current 2000A AC/DC digital clamp meter.
In addition to measuring AC/DC voltage, resistance, capacitance, frequency, and temperature, it can measure AC and DC current up to 2000A.
The UT221 has a large 63mm jaw opening, a 6000-count LCD display, non-contact voltage (NCV) detection, inrush current measurement, and True RMS technology.
It is appropriate for large electrical equipment, power distribution, industrial electrical maintenance, and general electrical testing due to its sturdy design.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Measures AC current up to 2000 A.
Measures DC current up to 2000 A.
Non-invasive AC/DC current measurement using clamp jaws.
True RMS measurement.
Measures AC voltage.
Measures DC voltage.
Measures resistance.
Measures capacitance.
Measures frequency.
Measures temperature.
Inrush current measurement.
Non-contact voltage (NCV) detection.
Continuity testing function.
Diode testing function.
Data hold function.
MAX/MIN measurement function.
Zero/Relative measurement function.
Auto-ranging function.
LCD backlight.
Built-in flashlight.
Low-battery indication.
Automatic power-off function.
Overload protection.
Large 63 mm maximum jaw opening.
6000-count LCD display.
Compact and durable handheld design.
Suitable for high-current electrical system testing.
Suitable for industrial electrical maintenance and troubleshooting.
Suitable for power distribution system testing.
Suitable for large electrical equipment testing.
Suitable for electrical installation and general diagnostics.
Specifications:
AC Current: 200 A / 2000 A.
AC Current Accuracy: ± (2% + 5).
AC Current Frequency Response: 50 Hz–60 Hz.
DC Current: 200 A / 2000 A.
DC Current Accuracy: ± (2% + 5).
AC Voltage: 600 V / 750 V.
AC Voltage Accuracy: ± (1.2% + 5).
DC Voltage: 600 V / 1000 V.
DC Voltage Accuracy: ± (0.8% + 2).
Resistance: 60 k Ω.
Resistance Accuracy: ± (1% + 2).
Capacitance: Up to 60 mF.
Capacitance Accuracy: ± (4% + 5).
Frequency: 10 Hz–10 MHz
Frequency Accuracy: ± (0.1% + 3).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (1% + 3).
Display Count: 6000.
Jaw Opening: 63 mm.
True RMS: Yes.
Inrush Current: Yes.
NCV Detection: Yes.
Diode Test: Yes.
Continuity Test: Audible buzzer.
Power Supply: 3 × 1.5 V AAA batteries.
Dimensions: 280 × 105 × 50 mm.
