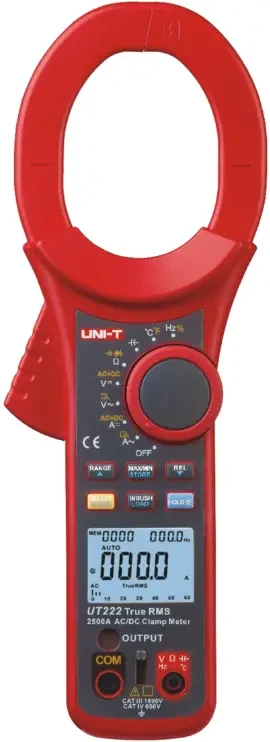

Digital Clamp Meters, UT222, 2500A Digital Clamp Meter AC/DC
SKU: UT222
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
For professional measurement and troubleshooting of high-current electrical systems, the UT222 is a high-current 2500A AC/DC digital clamp meter.
In addition to measuring resistance, capacitance, frequency, and temperature, it can measure AC and DC current up to 2500A, AC voltage up to 1000V, and DC voltage up to 1000V.
True RMS measurement, low-pass filtering, inrush current measurement, AC+DC measurement, relative mode, data storage, and a sizable 63mm jaw opening are all features of the UT222.
It is appropriate for large electrical equipment, power distribution, industrial electrical maintenance, and rigorous electrical testing applications.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures AC current up to 2500 A.
Measures DC current up to 2500 A.
Non-invasive AC/DC current measurement using clamp jaws.
Measures AC voltage up to 1000 V.
Measures DC voltage up to 1000 V.
Measures resistance.
Measures capacitance.
Measures frequency.
Measures temperature.
AC+DC measurement function.
Low-pass filter function.
Inrush current measurement.
Duty cycle measurement.
Relative measurement function.
MAX/MIN measurement function.
MIN/I-OUT function.
Data hold function.
Data storage for up to 1000 readings.
Auto-ranging function.
Continuity testing function.
Diode testing function.
LCD display with full icon display.
61-segment analogue bar graph.
Low-battery indication.
Overload protection.
Large 63 mm maximum jaw opening.
6000-count LCD display.
Compact and durable professional handheld design.
Suitable for high-current electrical system testing.
Suitable for industrial electrical maintenance and troubleshooting.
Suitable for power distribution system testing.
Suitable for large electrical equipment testing.
Suitable for electrical installation and general diagnostics.
Specifications:
AC Current: 2500 A.
AC Current Accuracy: ± (1.5% + 5).
DC Current: 2500 A.
DC Current Accuracy: ± (1.5% + 5).
AC Voltage: 1000 V.
AC Voltage Accuracy: ± (1% + 3).
DC Voltage: 1000 V.
DC Voltage Accuracy: ± (0.5% + 2).
Resistance: Up to 60 MΩ.
Resistance Accuracy: ± (1% + 2).
Capacitance: Up to 60 mF.
Capacitance Accuracy: ± (3% + 5).
Frequency: Up to 60 MHz
Frequency Accuracy: ± (0.1% + 3).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (1% + 10).
Display Count: 6000.
Jaw Opening: 63 mm.
True RMS: Yes.
AC+DC Measurement: Yes.
Low-Pass Filter: Yes.
Inrush Current: Yes.
Duty Cycle: 10%–90%.
Data Storage: Up to 1000 readings.
Analogue Bar Graph: 61 segments.
Power Supply: 9 V battery (6F22).
Display Size: 43 mm × 30 mm.
Product Dimensions: 298 mm × 107 mm × 47 mm.
