Electrical Power Clamp Meters, UT253A, 1200A Large Jaw Leakage Current Clamp Meter
SKU: UT253A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Large Jaws Leakage Current Digital Clamp Meter,
• Auto Range,
• Jaw Size 80x80mm,
• Leakage Current 0.001- 1200A, ACV 0.00V-600V,
• Resolution 0.01mA,
• RS232,
• Data Logging 200,
• LCB Backlight,
• Data Hold,
• Over-Range Display,
• Auto Power Off,
• Low Battery Display,
• Test Mode Clamp
• CT, Integral Approach
• SPECIFICATION: CE
• CAT RATING: CAT III 600V
Buy currently uses Select Automation shop pricing and checkout.

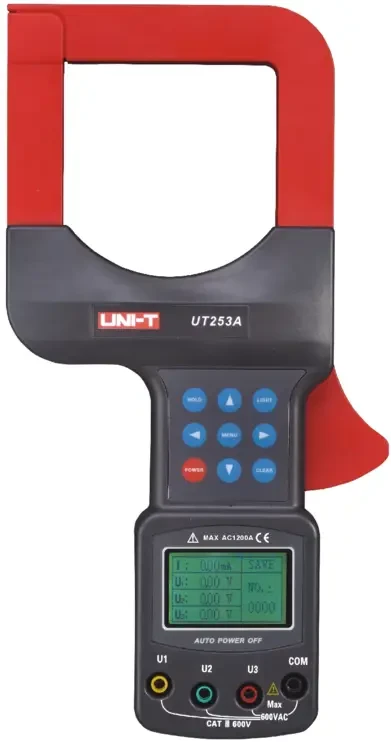

UT253A Large Jaw Leakage Current Clamp Meter
• UT253 series are large current high precision leakage clamp meters that can measure up to 1200A.
• Its large 80mm×80mm jaw is able to clamp up to 96mm cables or flat-steel ground wires.
• UT253’s intelligent design can measure leakage current, three-phase voltages and display them on the screen simultaneously.
