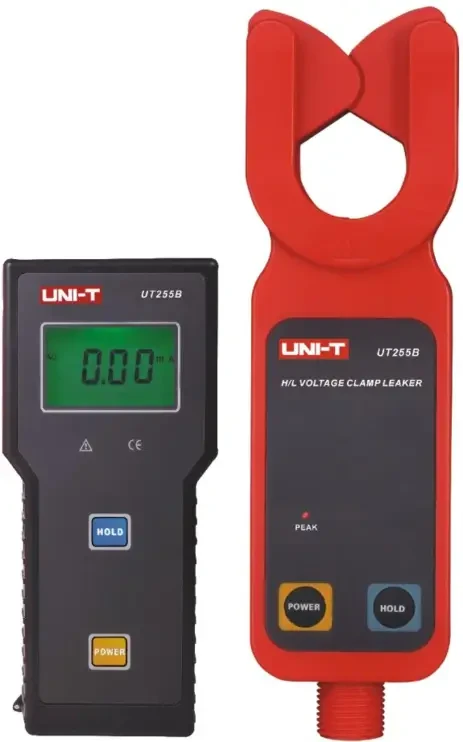

Electrical Power Clamp Meters, UT255B, 600A High Voltage (69kV) Clamp Meter Wireless
SKU: UT255B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• High Voltage Clamp Digital Ammeter,
• Auto Range,
• Leakage Current 0.01mA-600.0A,
• Voltage 0V-69KV (50HZ/60HZ),
• Jaw Capacity 33mm,
• Wireless Transmission (Data Recall),
• Data Logging,
• Peak Value,
• LCD Backlight,
• Data Hold,
• Auto Power Off,
• Low Battery Indication,
• Over-Range Display,
• Test Mode Clamp CT,
• Integral Approach,
• Sample Rate (about 2 times/second),
• 4 Digit Display
• SPECIFICATION: CE
• CAT RATING: CAT III 600V
Buy currently uses Select Automation shop pricing and checkout.
UT255 Series High Voltage Clamp Ammeters
• UT255 series high voltage clamp ammeters can measure up to 69kV high voltage line current and leakage current.
• UT255 comes with an insulation rod, allowing professional users to check status of lightning arresters.
• The wireless model (UT255B) is also able to wirelessly transmit data in real-time up to 30m range.
• Its clamp can be easily removed from wire by pressing or pulling back the insulation rod.
• Models in UT255 series: UT255A, UT255B
