Large Current Fork Meter, UT255C, Wireless Large Current Fork Meter
SKU: UT255C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• High Voltage Clamp Digital Ammeter,
• "U" Fork,
• Auto Range,
• Leakage Current 0.00A-9999A,
• Voltage 0V-60KV (50HZ/60HZ),
• Jaw Capacity 68mm,
• Wireless Transmission (up to 100m),
• Voltage Class of Insulation Rod 110KV,
• Insulation Rod Size 45mmφ,
• Length 850mm (Retracted; 3600mm (Extended),
• Power Supply DC6V Alkaline Dry Cell (1,5V AAA x4),
• Non-contact U-shaped CT,
• Tranfer Mode 433MHz Wireless Transfer,
• Transfer Distance 100m,
• Sampling Rate 2 time/s,
• Autorange,
• Data Storage 99 Sets,
• APO,
• Dielectric Strength AC220kV/rms (between both ends of fully-extended hot stick),
• Screen 4-digit LCD Display with backlight,
Buy currently uses Select Automation shop pricing and checkout.

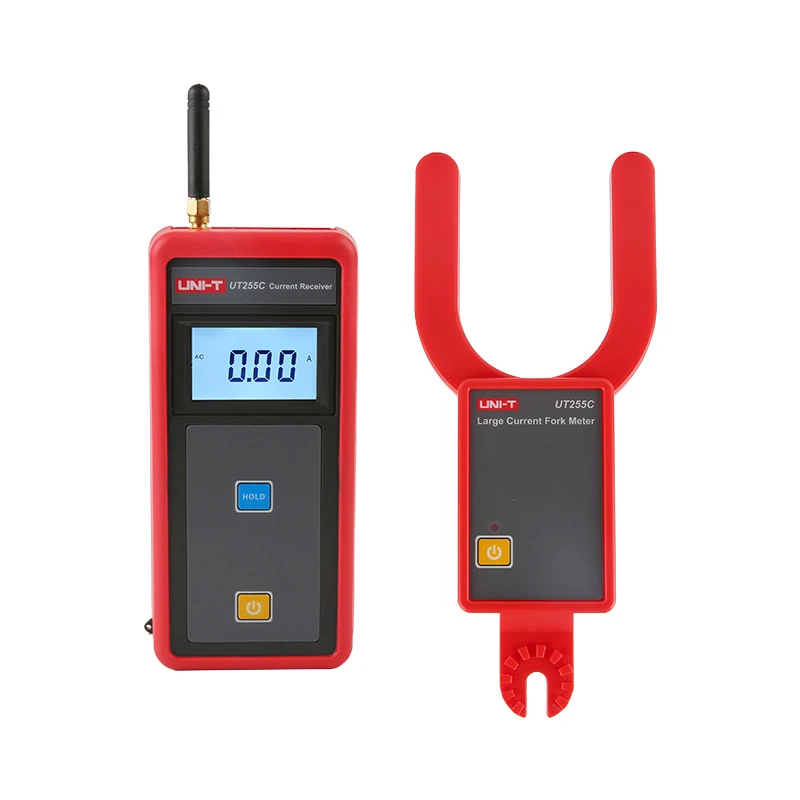

UT255C Wireless Large Current Fork Meter
• The UT255C Large Current Fork Meter is specifically designed and manufactured to measure high-voltage current (AC 0.00A~9999A).
• Its innovative U-shaped clamp, which features a breakthrough in the conventional structure, makes on-site measurement effortless.
• The UT255C Large Current Fork Meter is extensively employed in various settings, including substations, power plants, industrial and mining enterprises, detection stations, and electrical servicing departments.
