      General Environment Testers, UT255E, High Voltage Hook Ammeter

      SKU: UT255E

      Out of stock

      Availability: Out of Stock

      Short Description
      Specifications • High Voltage Clamp Digital Ammeter, • Auto Range, • Leakage Current 0.01mA-600.0A, • Voltage 0V-69KV (50HZ/60HZ), • Jaw Capacity 33mm, • Wireless Transmission (Data Recall, • Data Logging, • Peak Value, • LCD Backlight, • Data Hold, • Auto Power Off, • Low Battery Indication, • Over-Range Display, • Test Mode Clamp CT, • Integral Approach, • Sample Rate (about 2 times/second), • 3.5" LCD Digit Display
      UT255E
      Alternative image 1

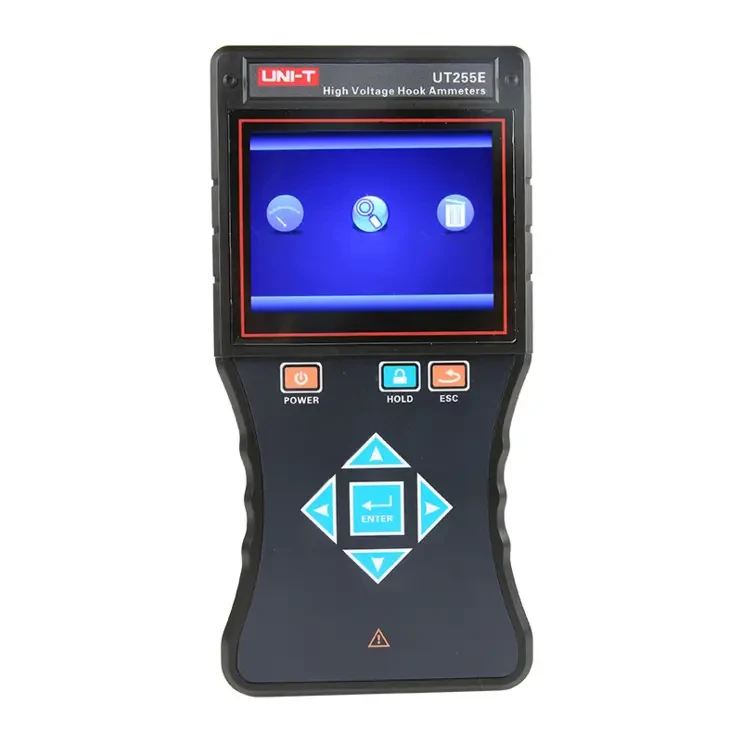

      UT255E Wireless High Low Voltage Hook Ammeter • UT255E is designed with a hook detector, wireless receiver, and telescopic insulating rod. • With telescopic insulating rods connected, it can test leakage current, current, frequency, load, and others for bare conductors, bus bars below 35kV, or cables with safety insulation sheaths below 110kV. • The hook detector is equipped with the built-in double-layer flexible coil, featuring lightweight, high precision, wide range, and good linearity, it can be hung onto the line for testing, especially suitable for detecting transformer load and inspecting leakage current of multi-core thick cables underground or outdoors.
