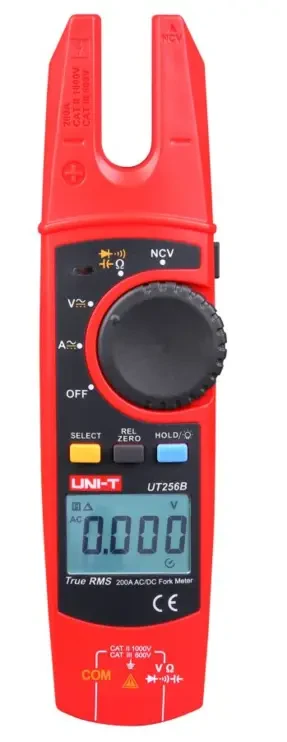

Digital Clamp Meters, UT256B, 200A True RMS Fork Meter AC/DC
SKU: UT256B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
For easy and precise current measurement in electrical systems, the UT256B is a 200A True RMS AC/DC fork meter.
It is perfect for working in tight locations because of its special fork-shaped construction, which enables AC and DC current measurements without disconnecting or interrupting the circuit.
In addition to measuring AC/DC voltage, resistance, and frequency, the UT256B has auto-ranging, data hold, zero mode, relative mode, an LCD backlight, visual and auditory alerts, and a small, light construction.
It is appropriate for general electrical testing, troubleshooting, installation, and maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures AC current up to 200 A.
Measures DC current up to 200 A.
Non-invasive AC/DC current measurement using the fork opening.
Measures AC voltage.
Measures DC voltage.
Measures resistance.
Measures frequency.
Non-contact voltage (NCV) detection.
Auto-ranging function.
Zero function.
Relative measurement mode.
Data hold function.
LCD backlight.
Audible and visual alarm.
Low-battery indication.
Automatic power-off function.
Compact and lightweight handheld design.
Unique fork design for convenient current measurement.
Suitable for measuring current in confined and narrow spaces.
Suitable for electrical installation and maintenance.
Suitable for electrical troubleshooting and diagnostics.
Suitable for general electrical testing applications.
Specifications:
AC Current: 200 A.
AC Current Accuracy: ± (2% + 5).
DC Current: 200 A.
DC Current Accuracy: ± (2% + 5).
AC Voltage: Up to 1000 V.
AC Voltage Accuracy: ± (1.2% + 3).
DC Voltage: Up to 1000 V.
DC Voltage Accuracy: ± (0.8% + 3).
Resistance: Up to 60 MΩ.
Resistance Accuracy: ± (1% + 2).
Frequency: 10 Hz–10 kHz.
Frequency Accuracy: ± (0.1% + 5).
Display Count: 6000.
True RMS: Yes.
NCV Detection: Yes.
Zero Mode: Yes.
Relative Mode: Yes.
Data Hold: Yes.
Backlight: Yes.
Audible and Visual Alarm: Yes.
Auto Power-Off: Yes.
Power Supply: 2 × 1.5 V AAA batteries.
Product Dimensions: 217 × 58.8 × 38.5 mm.
