Wireless Pressure Gauge, UT336P
SKU: UT336P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Wireless Digital Pressure Gauge
• Accuracy ±0.5%FS
• Units Pressure: Bar; kg/cm²; cmHg; psi; inHg; kPa; MPa,
• Temperature: ℃; ℉
• Refrigerant Types 10 types are preset (Set via APPs, total 94)
• Evaporating/Condensing Temperature As per the refrigerant type
• High/Low Pressure Switch
• Data Record 8000
• Data Record Interval 1s~1h (APP setting)
• LED Indicators Red (HP); Blue (LP);
• Pressure Zeroing
• Screen Backlight
• Phone APPs (iENV)
• Auto Power Off
• Firmware Upgrade
• Temperature Clamp Port 3.5 mm port
• Battery Life 100h (Alkaline battery; Backlight OFF; LED ON; 1-min record interval)
• IP Rating IP54
Buy currently uses Select Automation shop pricing and checkout.

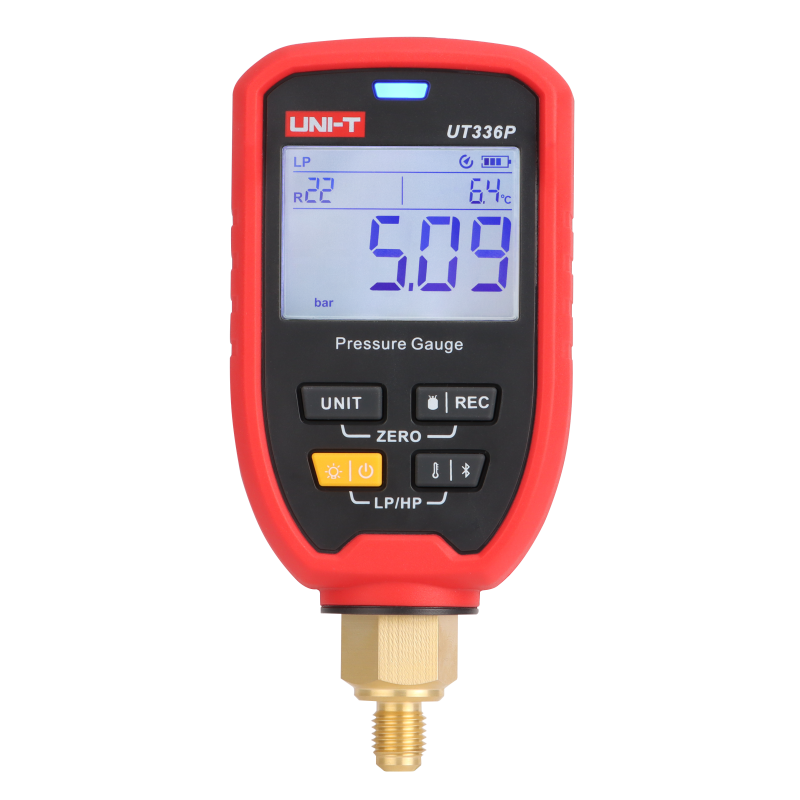

UT336P Wireless Pressure Gauge
• UT336P wireless pressure gauge is specifically designed for the installation, debugging, and maintenance of refrigeration and heat pump systems.
• It accurately measures system pressure and features offline data logging, supporting long-term real-time monitoring.
• The device is equipped with a 3.5mm temperature clamp interface, and when used with the UT-T19 temperature clamp, users can view key data such as high/low pressure refrigerant pipe temperature and superheat/subcooling on the app, ensuring efficient and stable system operation.
• It is suitable for a wide range of refrigeration and heat pump applications.
