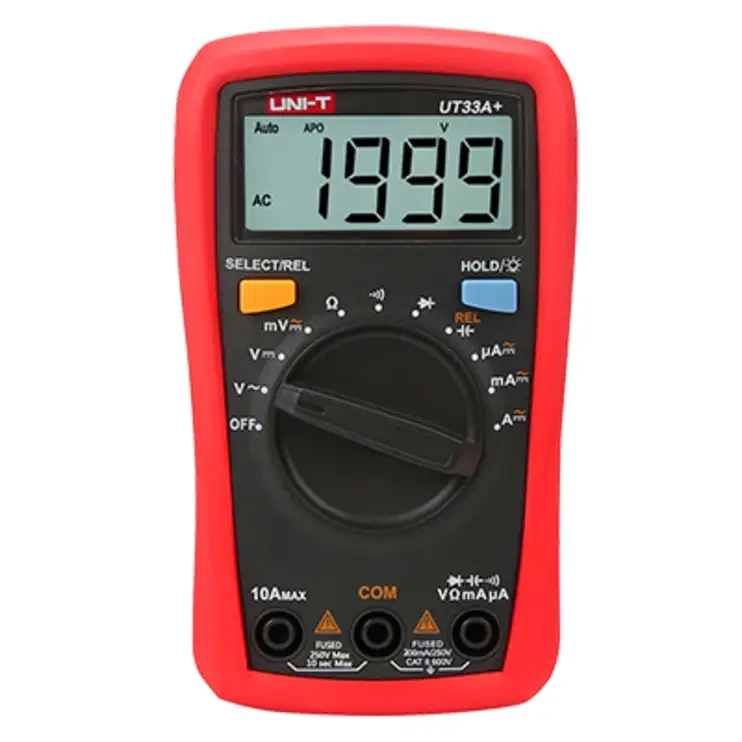

Digital Multimeters, UT33A+, 600V Palm Size Digital Multimeter - ADigital Multimeters, UTo Range
SKU: UT33A-plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT33A+ is a 600V palm-sized digital multi meter with an automatic range function that is suitable for general electrical and electronic measurements.
It can measure DC and AC voltages up to 600V, DC/AC currents up to 10A, resistance up to 200MΩ, and capacitance up to 2mF.
The UT33A+ includes a 2000-count LCD display, diode testing, a continuity buzzer, automatic power-off, an auto backlight, and 2m drop protection.
Its compact size and protective cover make it ideal for routine electrical testing, maintenance, and troubleshooting.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Auto-ranging measurement function.
Measures DC voltage up to 600 V.
Measures AC voltage up to 600 V.
Measures DC current up to 10 A.
Measures AC current up to 10 A.
Measures resistance up to 200 MΩ.
Measures capacitance up to 2 mF.
Diode testing function.
Continuity testing with audible buzzer.
Automatic power-off function.
Automatic backlight-off function.
Clear LCD display.
2000-count display.
Built-in test probe holder.
Protective cover with test lead hanging groove.
Loud buzzer sound for clear continuity indication.
2m drop protection.
Ergonomic palm-size design.
Compact and portable handheld design.
Suitable for general electrical measurement.
Suitable for electrical maintenance and troubleshooting.
Suitable for basic electronic testing and diagnostics.
Suitable for everyday electrical testing applications.
Specifications:
Meter Type: Palm Size Digital Multi meter.
DC Voltage: 200 mV / 2 V / 20 V / 200 V / 600 V.
DC Voltage Accuracy: ± (0.5% + 2).
AC Voltage: 600 V.
AC Voltage Accuracy: ± (0.7% + 3).
DC Current: 10 A.
DC Current Accuracy: ± (1% + 2).
AC Current: 10 A.
AC Current Accuracy: ± (1.2% + 3).
Resistance: 200 Ω / 2 k Ω / 20 k Ω / 200 k Ω / 2 MΩ / 20 MΩ / 200 MΩ.
Resistance Accuracy: ± (0.8% + 2).
Capacitance: 2 mF.
Capacitance Accuracy: ± (4% + 8).
Display Count: 2000.
Range Selection: Auto Range.
Diode Test: Yes.
Continuity Buzzer: Yes.
Auto Power-Off: Yes.
Auto Backlight-Off: Yes.
Test Probe Holder: Yes.
Drop Protection: 2 m.
Power Supply: 2 × 1.5 V R03 batteries.
Display Size: 66 mm × 51 mm.
Product Dimensions: 134 mm × 77 mm × 47 mm.
