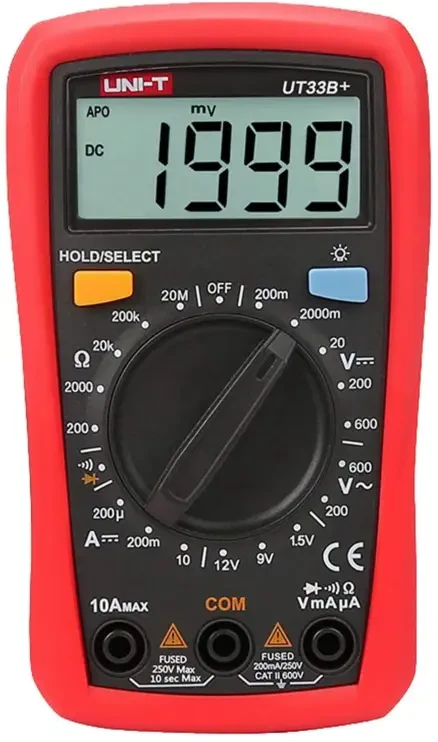

Digital Multimeters, UT33B+, 600V Palm Size Digital Multimeter - Manual Range
SKU: UT33B-plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT33B+ is an entry-level 600V palm-size digital multi meter with manual range that is ideal for general electrical and electronic measurements.
It can monitor DC voltage (up to 600V), AC voltage (up to 600V), DC current (10A), and resistance (up to 20MΩ).
The UT33B+ additionally has a specific battery test feature for 1.5V, 9V, and 12V batteries.
It has a 2000-count LCD display, diode testing, a continuity alarm, automatic power off, a protective cover with a groove for hanging test leads, and 2m drop protection.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Manual-ranging measurement function.
Measures DC voltage up to 600 V.
Measures AC voltage up to 600 V.
Measures DC current up to 10 A.
Measures resistance up to 20 MΩ.
Tests 1.5 V batteries.
Tests 9 V batteries.
Tests 12 V batteries.
Diode testing function.
Continuity testing with audible buzzer.
Automatic power-off function.
Automatic backlight-off function.
Clear LCD display.
2000-count display.
Built-in test probe holder.
Protective cover with test lead hanging groove.
Loud buzzer sound for clear continuity indication.
2m drop protection.
Ergonomic palm-size design.
Compact and portable handheld design.
Suitable for general electrical measurement.
Suitable for electrical maintenance and troubleshooting.
Suitable for battery testing and basic electronic testing.
Suitable for everyday electrical testing applications.
Specifications:
Meter Type: Palm Size Digital Multi meter.
DC Voltage: 200 mV / 2 V / 20 V / 200 V / 600 V.
DC Voltage Accuracy: ± (0.5% + 2).
AC Voltage: 200 V / 600 V.
AC Voltage Accuracy: ± (1.2% + 3).
DC Current: 200 μA / 200 mA / 10 A.
DC Current Accuracy: ± (1% + 2).
Resistance: 200 Ω / 2 k Ω / 20 k Ω / 200 k Ω / 20 MΩ / 200 MΩ.
Resistance Accuracy: ± (0.8% + 2).
Battery Test: 1.5 V / 9 V / 12 V.
Display Count: 2000.
Range Selection: Manual Range.
Diode Test: Yes.
Continuity Buzzer: Yes.
Auto Power-Off: Yes.
Auto Backlight-Off: Yes.
Test Probe Holder: Yes.
Drop Protection: 2 m.
Power Supply: 2 × 1.5 V R03 batteries.
Display Size: 66 mm × 51 mm.
Product Dimensions: 134 mm × 77 mm × 47 mm.
