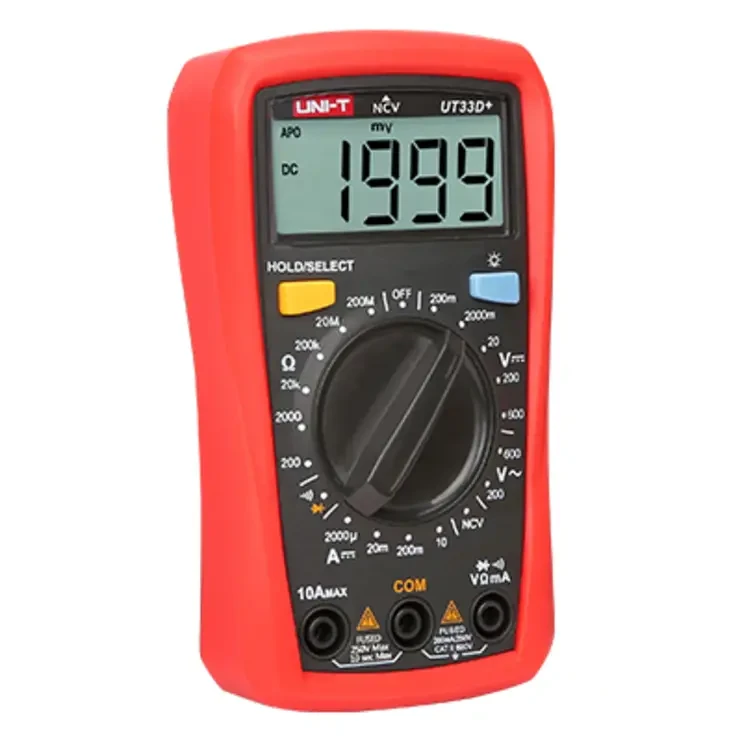

Digital Multimeters, UT33D+, 600V Palm Size Digital Multimeter - Manual Range
SKU: UT33D-plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT33D+ is a 600V palm-size digital multi meter with manual range, ideal for general electrical measurement, maintenance, and troubleshooting.
It can monitor DC voltage (up to 600V), AC voltage (up to 600V), DC current (10A), and resistance (up to 200MΩ).
The UT33D+ has a 2000-count LCD display, diode testing, continuity testing with audible buzzer, automated power-off, and a 2m drop-protected construction.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Manual-ranging measurement function.
Measures DC voltage up to 600 V.
Measures AC voltage up to 600 V.
Measures DC current up to 10 A.
Measures resistance up to 200 MΩ.
Diode testing function.
Continuity testing with audible buzzer.
Automatic power-off function.
Clear LCD display.
2000-count display.
Built-in test probe holder.
Protective cover with test lead hanging groove.
Loud buzzer sound for clear continuity indication.
2m drop protection.
Ergonomic palm-size design.
Compact and portable handheld design.
Suitable for general electrical measurement.
Suitable for electrical maintenance and troubleshooting.
Suitable for basic electronic testing and diagnostics.
Suitable for everyday electrical testing applications.
Specifications:
Meter Type: Palm Size Digital Multi meter.
DC Voltage: 200 mV / 2 V / 20 V / 200 V / 600 V.
DC Voltage Accuracy: ± (0.5% + 2).
AC Voltage: 200 V / 600 V.
AC Voltage Accuracy: ± (1.2% + 3).
DC Current: 2000 μA / 20 mA / 200 mA / 10 A.
DC Current Accuracy: ± (1% + 2).
Resistance: 200 Ω / 2 k Ω / 20 k Ω / 200 k Ω / 20 MΩ / 200 MΩ.
Resistance Accuracy: ± (0.8% + 2).
Display Count: 2000.
Range Selection: Manual Range.
Diode Test: Yes.
Continuity Buzzer: Yes.
Auto Power-Off: Yes.
Test Probe Holder: Yes.
Drop Protection: 2 m.
Power Supply: 2 × 1.5 V R03 batteries.
Display Size: 66 mm × 51 mm.
Product Dimensions: 134 mm × 77 mm × 47 mm.
