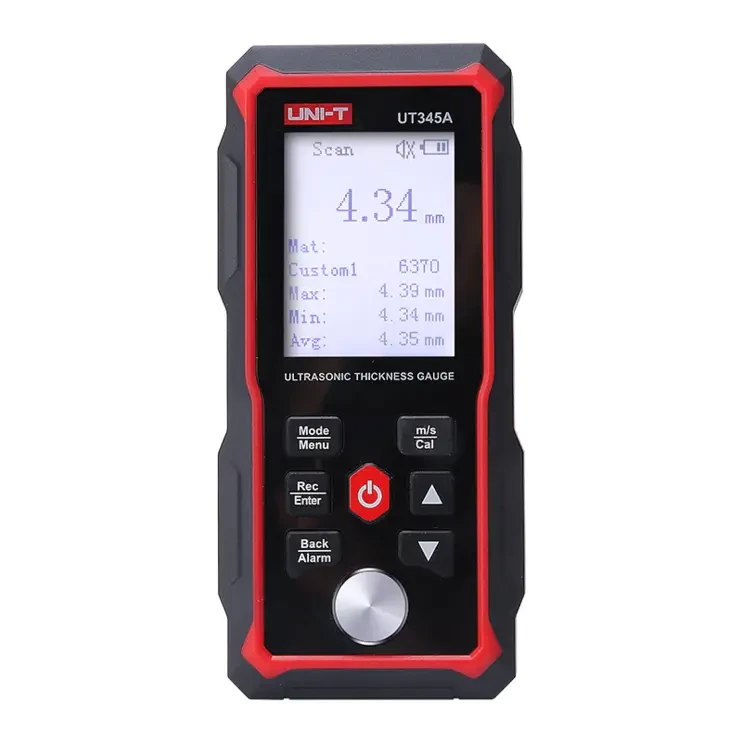

Coating Thickness Meters, UT345A, Ultrasonic Thickness Gauge
SKU: UT345A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT345A Ultrasonic Thickness Gauge is a portable, non-destructive testing tool that uses ultrasonic technology to measure the thickness of metal and nonmetal objects.
It can measure the remaining wall thickness of steel, cast iron, aluminium, copper, brass, polymers, ceramics, and glass.
The UT345A is suitable for corrosion monitoring, industrial maintenance, quality control, manufacturing, and inspection applications in which only one side of the material is accessible.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Uses ultrasonic measurement technology.
Non-destructive thickness measurement.
Measures metal and non-metal materials.
Suitable for steel, cast iron, aluminium, copper and brass.
Suitable for plastics, ceramics and glass.
Measures material thickness from one side.
Automatic material calibration function.
Zero calibration function.
Velocity calibration function.
Coupling status indication.
High and low limit alarm function.
Maximum and minimum value measurement.
Data hold function.
High-resolution LCD display.
Backlight function.
Low-battery indication.
Automatic power-off function.
Compact and portable handheld design.
Suitable for corrosion and erosion monitoring.
Suitable for industrial maintenance and quality control.
Suitable for manufacturing and material inspection.
Specifications:
Product Type: Ultrasonic Thickness Gauge.
Measurement Method: Ultrasonic.
Measurement Range: 1.0–300 mm (steel).
Measurement Accuracy: ± (1% + 0.1 mm).
Resolution: 0.01 mm / 0.1 mm.
Sound Velocity Range: 1,000–9,999 m/s.
Material Types: Metal / non-metal.
Measurement Mode: Single-point measurement.
Calibration: Zero-point / Sound velocity calibration.
Coupling Status Indication: Yes.
High/Low Limit Alarm: Yes.
Maximum Value: Yes.
Minimum Value: Yes.
Data Hold: Yes.
Display Type: LCD.
Backlight: Yes.
Low Battery Indication: Yes.
Automatic Power-Off: Yes.
Power Supply: Battery powered.
Operating Temperature: 0°C–50°C.
Storage Temperature: -10°C–60°C.
Operating Humidity: <80% RH.
Application: Metal and non-metal material thickness measurement, corrosion inspection and industrial testing.
