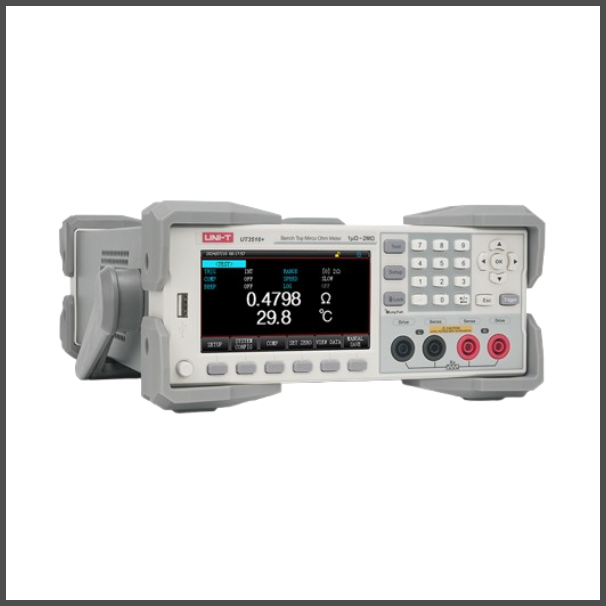

Battery Tester, UT3516+: Micro Ohm Meter (2MΩ, accuracy: 0.05%)

Features: DC resistance measurement from 1 µΩ to 2 MΩ. Maximum accuracy of 0.05%. Minimum resolution of 1 µΩ. Measurement speed of up to 100 readings/s. 4.3-inch TFT LCD display. Multiple measurement modes: R, R-T, T, LPR and LPR-T. LPR low-voltage test mode to help protect the device under test. Automatic and manual measurement range selection. High-precision four-terminal measurement. Resistance sorting and PASS/FAIL judgement. Supports absolute tolerance, percentage tolerance and direct-reading comparison. Short-circuit full-range zeroing calibration. RS-232, RS-485, LAN and Handler communication interfaces. Supports SCPI and Modbus RTU protocols. PC, PLC and WINCE communication capability. Remote control and data acquisition support. Compact ½ 2U benchtop design.   Specifications: Product Type: Micro Ohm Meter / DC Resistance Tester. Resistance Measurement Range: 1 µΩ–2 MΩ. Minimum Resolution: 1 µΩ. Maximum Accuracy: 0.05%. Maximum Test Rate: 100 readings/s. Measurement Modes: R / R-T / T / LPR / LPR-T. Low-Voltage Test Mode: LPR. Measurement Range Selection: Automatic / Manual. Measurement Method: Four-terminal measurement. Sorting Function: PASS/FAIL. Comparison Methods: Absolute tolerance / Percentage tolerance / Direct-reading comparison. Zeroing Calibration: Short-circuit full-range zeroing. Display: 4.3-inch TFT LCD. Communication Interfaces: RS-232 / RS-485 / LAN / Handler. Communication Protocols: SCPI / Modbus RTU. Form Factor: ½ 2U. Applications: Laboratory testing / Production testing / Quality control / Automated test systems.
