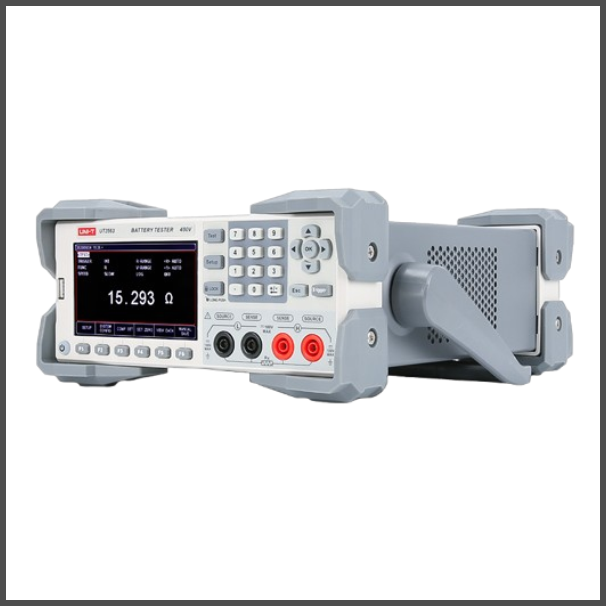

Battery Tester, UT3562: Battery Testers (100V, 3.2kΩ)
SKU: UT3562
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT3562 Battery Internal Resistance Tester is a high-precision, high-resolution instrument that measures battery internal resistance and voltage.
It has a 4.3-inch LCD display that can show both the battery's internal resistance and voltage concurrently.
With measuring speeds of up to 65 readings per second, the UT3562 is ideal for efficient battery testing in production and quality inspection settings.
It provides automatic and manual range selection, comparator-based PASS/FAIL sorting, data storage, and PC communication via Handler, RS-232, and USB interfaces.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Battery internal resistance and voltage measurement.
Measures battery voltage up to 100 V.
Resistance measurement up to 3.2 k Ω.
High-resolution resistance measurement down to 0.1 µΩ.
Resistance accuracy of 0.5%.
Voltage accuracy of 0.01%.
Maximum measurement speed of up to 65 measurements/second.
Slow, Medium, Rapid and High-speed measurement modes.
Automatic and manual range selection.
4.3-inch LCD display.
Displays battery resistance and voltage simultaneously.
PASS/FAIL sorting function.
Comparator with absolute tolerance, percentage tolerance and direct-reading comparison.
Audible PASS/FAIL alarm.
Short-circuit full-range zeroing calibration.
Data recording and statistical functions.
Stores up to 10,000 sets of data for calculation and analysis.
USB storage support.
Handler, RS-232 and USB communication interfaces.
Supports SCPI and Modbus protocols.
PC software support.
Suitable for lithium, lead-acid, button and other battery types.
Specifications:
Product Type: Battery Internal Resistance Tester
Voltage Measurement Range: 6 V / 60 V / 100 V.
Voltage Measurement Range (detailed): 0.00001 V–101.000 V.
Resistance Measurement Range: 0.0001 m Ω–3.2 k Ω.
Resistance Range Steps: 3 m Ω / 30 m Ω / 300 m Ω / 3 Ω / 30 Ω / 300 Ω / 3 k Ω.
Resistance Resolution: 0.1 µΩ.
Voltage Resolution: 10 µV.
Resistance Accuracy: 0.5%.
Voltage Accuracy: 0.01%.
Measurement Speed: Slow / Medium / Rapid / High-speed.
Maximum Measurement Speed: Up to 65 readings/second.
Temperature Coefficient – Voltage: ± (0.001% rdg. + 0.3 dgt.)/°C.
Temperature Coefficient – Resistance: ± (0.05% rdg. + 0.5 dgt.)/°C.
Range Mode: Automatic / Manual.
Calibration: Short-circuit full-range zeroing.
Comparator: Yes.
Sorting Result: PASS / FAIL.
Beeper: OFF / PASS / FAIL.
Data Storage: Up to 10,000 sets.
Display: 4.3-inch LCD.
Interfaces: Handler / RS-232 / USB.
Protocols: SCPI / Modbus.
PC Software: Yes.
Power Supply: AC 100–240 V, 50/60 Hz.
Dimensions: 340 × 214 × 89 mm.
