      Battery Tester, UT3563: Battery Testers (400V, 3.2kΩ)

      SKU: UT3563

      Out of stock

      Availability: Out of Stock

      Short Description
      The UT3563 Battery Internal Resistance Tester is a high-precision benchtop instrument for assessing battery health using internal resistance and voltage measurements. It provides 0.1 µΩ resistance resolution and 10 µV voltage resolution, with basic accuracies of 0.5% for resistance and 0.01% for voltage. The UT3563 has a 4.3-inch TFT LCD and supports automated and manual range selection, PASS/FAIL sorting, data storing, and PC communication. Unlike the UT3562, the UT3563 can measure voltages up to 400 V.

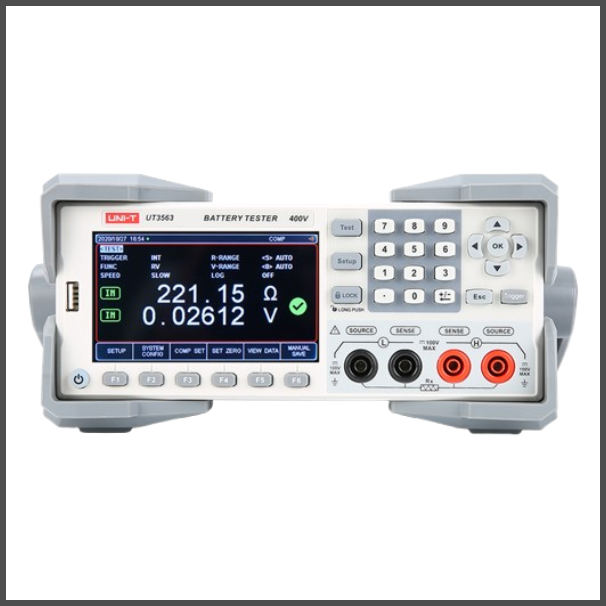

      UT3563
      Alternative image 1
      Features: Battery internal resistance and voltage measurement. Voltage measurement up to 400 V. Resistance measurement up to 3.2 k Ω. High-resolution resistance measurement down to 0.1 µΩ. Voltage resolution of 10 µV. Resistance accuracy of 0.5%. Voltage accuracy of 0.01%. 4.3-inch TFT LCD display. Automatic and manual range selection. PASS/FAIL sorting function. Absolute tolerance, percentage tolerance and direct-reading comparison modes. Short-circuit full-range zeroing calibration. Data storage capability. Handler, RS-232 and USB interfaces. Supports SCPI and Modbus protocols. PC software support. Suitable for lithium, lead-acid, button and other battery types. Suitable for battery production, quality inspection and maintenance applications.   Specifications: Product Type: Battery Internal Resistance Tester. Voltage Measurement Range: 0.00001 V–400.000 V. Selectable Voltage Ranges: 6 V / 60 V / 100 V / 400 V. Resistance Measurement Range: 0.0001 m Ω–3.2000 k Ω. Resistance Resolution: 0.1 µΩ. Voltage Resolution: 10 µV. Resistance Accuracy: 0.5%. Voltage Accuracy: 0.01%. Measurement Speed: Slow / Medium / Rapid / High-speed. Range Mode: Automatic / Manual. Calibration: Short-circuit full-range zeroing. Comparator / Sorting: PASS / FAIL. Comparison Methods: Absolute tolerance / Percentage tolerance / Direct-reading comparison. Beeper: OFF / PASS / FAIL. Display: 4.3-inch TFT LCD. Interfaces: Handler / RS-232 / USB. Protocols: SCPI / Modbus. PC Software: Yes. Online Measurement: No. Power Supply: AC 100–240 V, 50/60 Hz. Dimensions: 340 × 214 × 89 mm.
