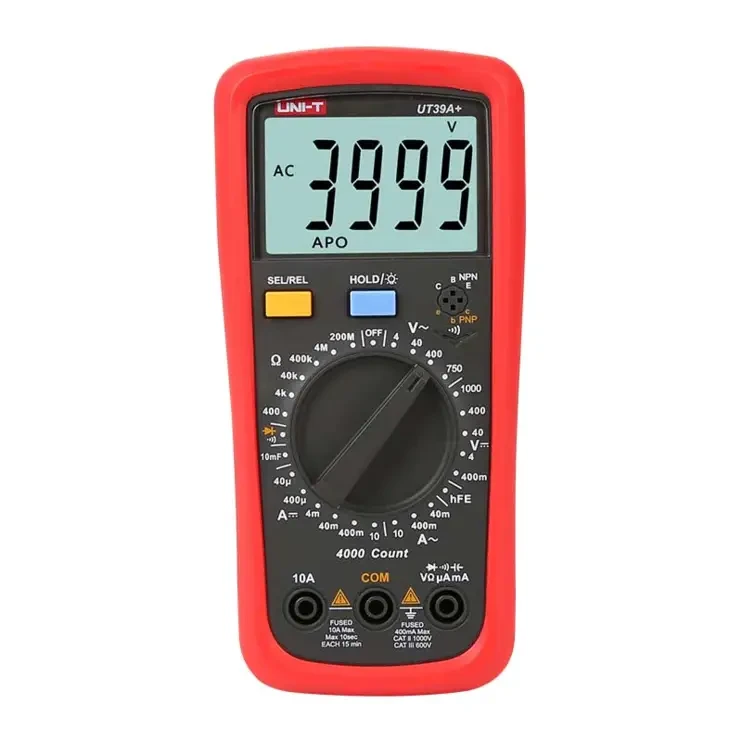

Digital Multimeters, UT39A+, 1000VDC/750VAC Modern Digital Multimeter
SKU: UT39A-plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT39A+ is a modern digital multi meter intended for general electrical and electronic measurement, maintenance, and troubleshooting.
It can measure DC voltage up to 1000V, AC voltage up to 750V, DC current up to 10A, resistance up to 40MΩ, and capacitance up to 200μF.
The UT39A+ has a 4000-count LCD display, manual ranging, diode checking, continuity testing with audible buzzer, data hold, low battery indicator, and automatic power-off.
Its tiny portable design makes it ideal for general electrical testing and maintenance tasks.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Measures DC voltage up to 1000 V.
Measures AC voltage up to 750 V.
Measures DC current up to 10 A.
Measures resistance up to 40 MΩ.
Measures capacitance up to 200 μF.
Measures frequency.
Measures duty cycle.
Manual-ranging measurement function.
Diode testing function.
Continuity testing with audible buzzer.
Data hold function.
Low-battery indication.
Automatic power-off function.
4000-count LCD display.
Overload protection.
Compact and portable handheld design.
Suitable for general electrical measurement.
Suitable for electrical maintenance and troubleshooting.
Suitable for basic electronic testing and diagnostics.
Suitable for general-purpose electrical testing applications.
Specifications:
Meter Type: Modern Digital Multi meter.
DC Voltage: 400 mV / 4 V / 40 V / 400 V / 1000 V.
DC Voltage Accuracy: ± (0.5% + 2).
AC Voltage: 4 V / 40 V / 400 V / 750 V.
AC Voltage Accuracy: ± (1.2% + 3).
DC Current: 400 μA / 4 mA / 40 mA / 400 mA / 10 A.
DC Current Accuracy: ± (1% + 2).
Resistance: 400 Ω / 4 k Ω / 40 k Ω / 400 k Ω / 4 MΩ / 40 MΩ.
Resistance Accuracy: ± (0.8% + 2).
Capacitance: 40 nF / 400 nF / 4 μF / 40 μF / 200 μF.
Capacitance Accuracy: ± (4% + 8).
Frequency: 10 Hz–10 MHz
Frequency Accuracy: ± (0.1% + 3).
Duty Cycle: 0.1%–99.9%.
Display Count: 4000.
Range Selection: Manual Range.
Diode Test: Yes.
Continuity Buzzer: Yes.
Data Hold: Yes.
Low-Battery Indication: Yes.
Auto Power-Off: Yes.
Overload Protection: Yes.
Power Supply: 2 × 1.5 V AAA batteries.
Product Dimensions: 175 mm × 83 mm × 53 mm.
