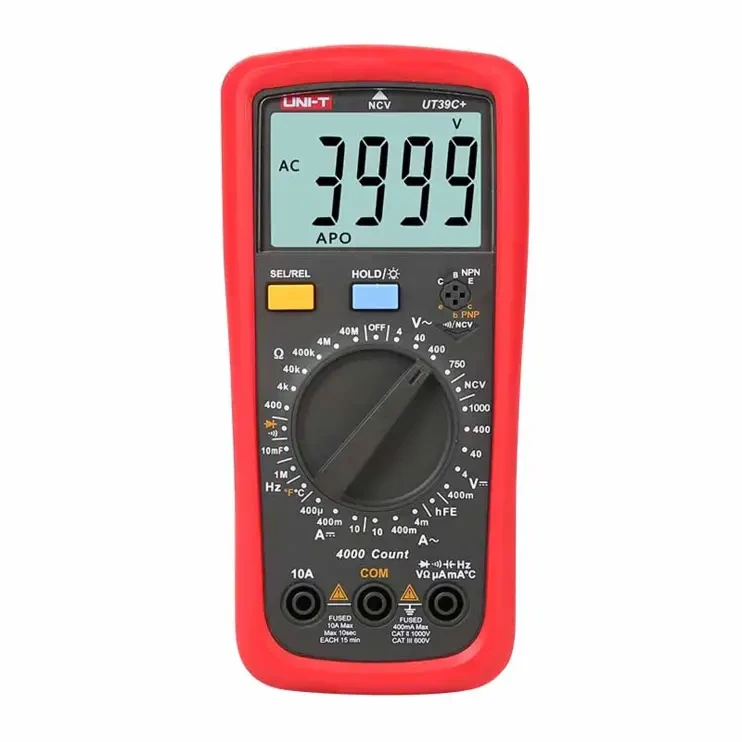

Digital Multimeters, UT39C+, 1000VDC/750VAC Modern Digital Multimeter HVAC
SKU: UT39C-plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT39C+ is a modern digital multi meter intended for HVACR repair and general electrical measurements.
It can measure DC voltage up to 1000V, AC voltage up to 750V, DC/AC current up to 10A, resistance up to 40MΩ, capacitance up to 10mF, frequency up to 1MHz, and temperature from -40°C to 1000°C.
The UT39C+ includes manual range, diode and continuity testing, data hold, automatic power-off, low-battery warning, and input protection.
It complies with CAT II 1000V/CAT III 600V safety standards and incorporates a temperature probe for HVACR applications.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Measures DC voltage up to 1000 V.
Measures AC voltage up to 750 V.
Measures DC current up to 10 A.
Measures AC current up to 10 A.
Measures resistance up to 40 MΩ.
Measures capacitance up to 10 mF.
Measures frequency from 10 Hz to 1 MHz
Measures temperature from -40°C to 1000°C.
Measures temperature from -40°F to 1832°F.
Manual-ranging measurement function.
Diode testing function.
Continuity testing with audible buzzer.
Data hold function.
Automatic power-off function.
Low-battery indication.
Input protection function.
4000-count display.
Compact and portable handheld design.
Suitable for HVACR maintenance and troubleshooting.
Suitable for general electrical measurement and maintenance.
Suitable for electrical and electronic testing.
Suitable for capacitance and temperature measurement.
Suitable for professional HVAC and electrical diagnostics.
Specifications:
Meter Type: Modern Digital Multi meter.
Application: HVACR Maintenance.
DC Voltage: 400 mV / 4 V / 40 V / 400 V / 1000 V.
DC Voltage Accuracy: ± (0.5% + 5).
AC Voltage: 4 V / 40 V / 400 V / 750 V.
AC Voltage Accuracy: ± (0.8% + 3).
DC Current: 400 μA / 400 mA / 10 A.
DC Current Accuracy: ± (0.8% + 3).
AC Current: 4 mA / 400 mA / 10 A.
AC Current Accuracy: ± (1% + 2).
Resistance: 400 Ω / 4 k Ω / 40 k Ω / 400 k Ω / 4 MΩ / 40 MΩ.
Resistance Accuracy: ± (0.8% + 2).
Capacitance: Up to 10 mF.
Capacitance Accuracy: ± (4% + 5).
Frequency: 10 Hz–1 MHz
Frequency Accuracy: ± (0.1% + 4).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (1% + 4).
Temperature Fahrenheit Range: -40°F to 1832°F.
Temperature Fahrenheit Accuracy: ± (1.5% + 5).
Display Count: 4000.
Range Selection: Manual Range.
Diode Test: Yes.
Continuity Buzzer: Yes.
Data Hold: Yes.
Auto Power-Off: Yes.
Low-Battery Indication: Yes.
Input Protection: Yes.
Power Supply: 2 × 1.5 V R03 batteries.
Display Size: 56.5 mm × 36 mm.
Product Dimensions: 175 mm × 83 mm × 53 mm.
