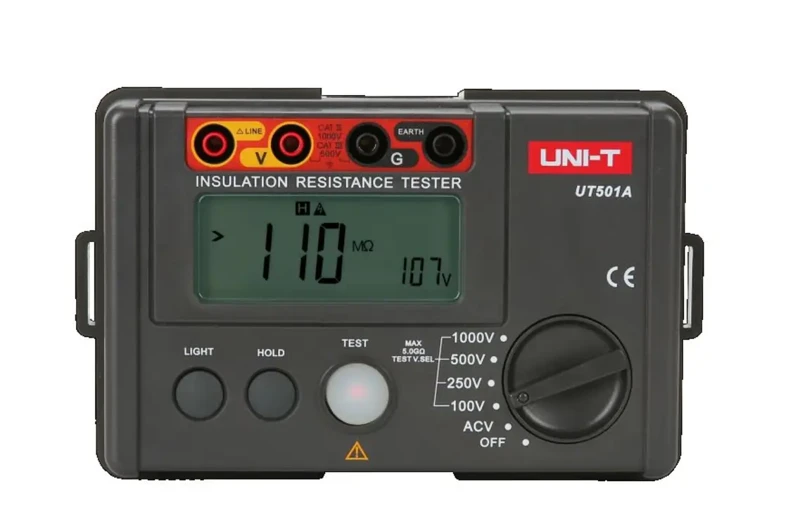

Electrical Installation Testers, UT501A, 1000V Compact Insulation Resistance Tester
SKU: UT501A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Compact Insulation Resistance Tester 100V/250V/500V/1000V, ACV 750V,
• Auto Range,
• Low Battery Indication,
• Backlight,
• Alarm Light Display,
• Alarm Buzzer,
• High Voltage Indication,
• Over Load Indication,
• Auto Discharge,
• 10MΩ Internal Resistance Test,
• CAT II 1000V; CAT III 600V,
• 2000 Count
Buy currently uses Select Automation shop pricing and checkout.
UT500 Series Insulation Resistance Testers
• UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances.
• This is done by measuring the insulation resistance between electrical circuits or between circuits and ground.
• UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption).
• These are ideal tools for ensuring transformers, generators, high voltage motors, capacitors, cables, arresters and other electrical equipment that can oprate in a safe and accurate manner.
• Models in UT500 series: UT501A, UT501B, UT502A
