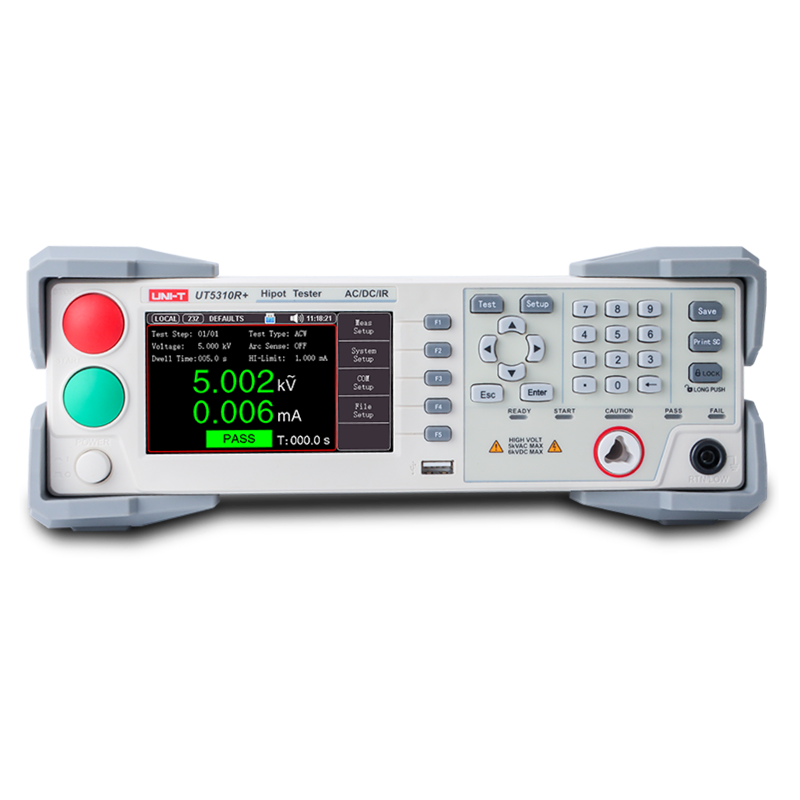

Hipot Testers, UT5310D+: 1CH, AC / DC programmable
SKU: UT5310D-Plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UT5300+ Series, Hipot Testers:
4.3-inch TFT LCD with WVGA resolution (800×480).
Test modes include AC, DC, IR, and OS.
Test for withstanding voltage: DC 6 kV/5 mA and AC 5 kV/10 mA.
Accuracy of measurement: 3% ± 2 digits.
ARC-detecting capability.
role of comparative judgment.
Allow up to 10,000 test items to be stored.
USB host interface that supports storage and screenshots.
Offer a normal RS-232C interface, a PLC interface, and SCPI protocol capability.
Provide upper-level computer software to enable remote control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UT5300+ Series, Hipot Testers.
Channel 1.
Voltage range 0.050kV-5.000kV.
Voltage waveform Sine wave.
Distortion degree < 3％.
Operating Frequency 50/60Hz.
Frequency accuracy ±1%.
Output power 50VA (5.000kV 10mA).
Voltage regulation ±(1.0%+50V) (Rated power).
Power AC 110V/220V±10% 50-60Hz.
Display mode 4.3-inch LCD screen.
Product size(W×H×D) 280mm×88mm×428mm.
