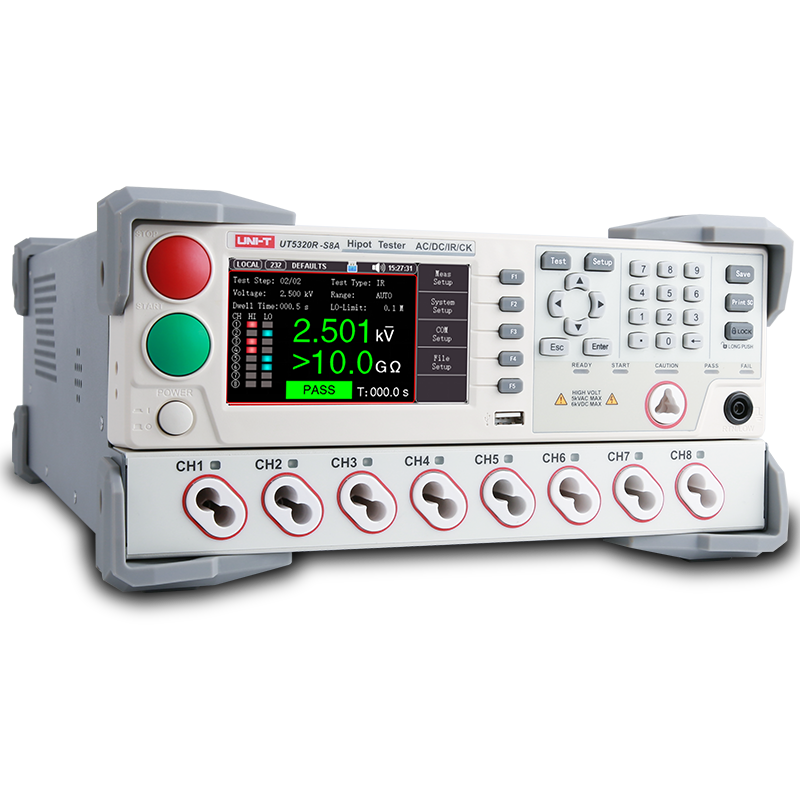

Hipot Testers, UT5320R-S8A: 8CH, AC / DC / IR programmable insulation

  UT5320R-SxA Series, Hipot Testers: 4.3-inch TFT LCD with full colour. 4/8 channels with several outputs. Supports AC/DC withstand voltage, IR insulation, and contact tests. Full isolation and floating output. AC withstand voltage (ACW): 5 kV at 20 mA. DC withstand voltage (DCW): 6 kV at 10 mA. 2.5 kV/10 GΩ is the insulation resistance (IR); 5 kV is optional. There is flexibility in setting up the rise-up time, slope-down time, test time, and compensation return to zero. Intelligent judgment: over-upper limit, over-lower limit, arc, or over-charging lower limit (sound and light signal). Multiple protections against overvoltage, short circuit, rapid discharge, and earth failure. Anti-electric wall technology identifies the circuit at any time, preventing electric shock and ensuring employee safety. Protection against overvoltage, overcurrent, and current base reset. Can hold 100 test files, with 20 test steps per file and the ability to mix test modes in any way. Respect the common Modbus and SCPI communication protocols. RS-232C, LAN, and Handler (PLC) interfaces are all included.
