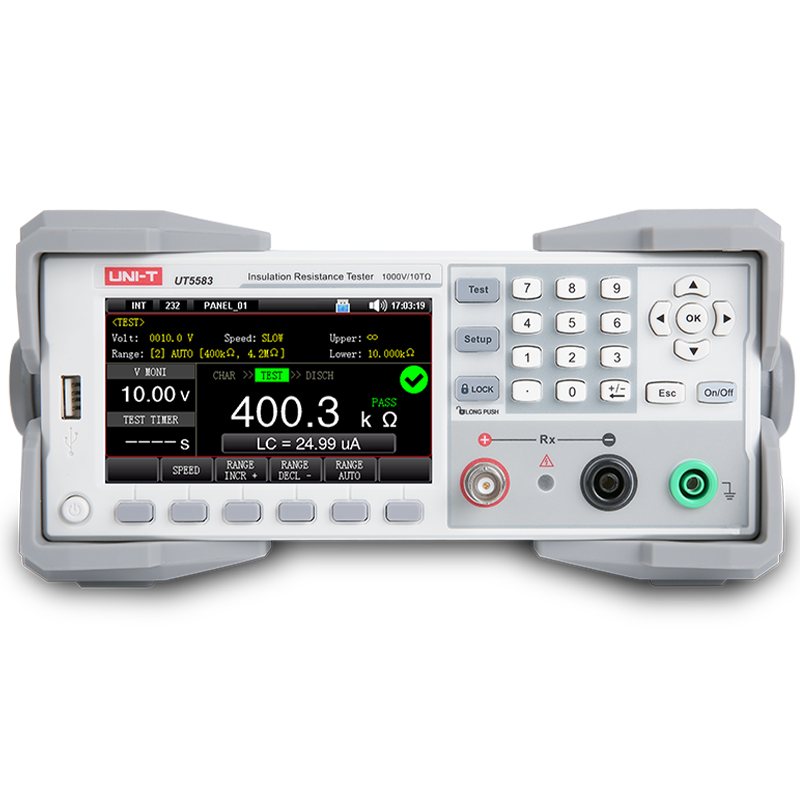

Insulation Resistance Tester, UT5583 1V-1000V, 25mA
SKU: UT5583
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UT5583 Series, Insulation Resistance Tester:
TFT-LCD display, 4.3 inches.
Real-time monitoring of output voltage.
Insulation resistance and leakage current are both displayed simultaneously.
You can change the charging, testing, and discharging times.
Full-range open-circuit reset and calibration function.
Capacitive materials' contact check feature.
Choose the five-digit or four-digit digit display option.
The comparator function enables qualified and unqualified sorting.
Setup a function for sorting judgment sounds.
Rapid discharge capability.
Recording of U disk data.
Can hold 100 test files and supports U-disk file access.
Rich interface with support for SCPI and MODBUS protocols.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UT5583 Series, Insulation Resistance Tester.
Measurement parameters Insulation resistance, leakage current.
Output voltage program control 1V-1000V(DC): ≥10V, step 1V <10V, step 0.1V.
Voltage accuracy ≥10V, 1%±1V <10V, 10%±0.1V.
Measurement range Resistance:10kΩ-10TΩ Current:100pA-250uA.
Test speed Fast: 30ms/time, medium speed: 100ms/time, slow speed: 500ms/time.
Range mode Auto, Locked, Nominal (select best range based on comparator setting).
Max. charge current 25mA±5mA.
Interface RS232C, USB HOST, LAN, RS485; HANDLER, FOOT.
Power AC 110V/220V 47-63Hz.
Display mode 4.3-inch LCD screen.
Product size(W×H×D) 215mm×88mm×382.3mm.
