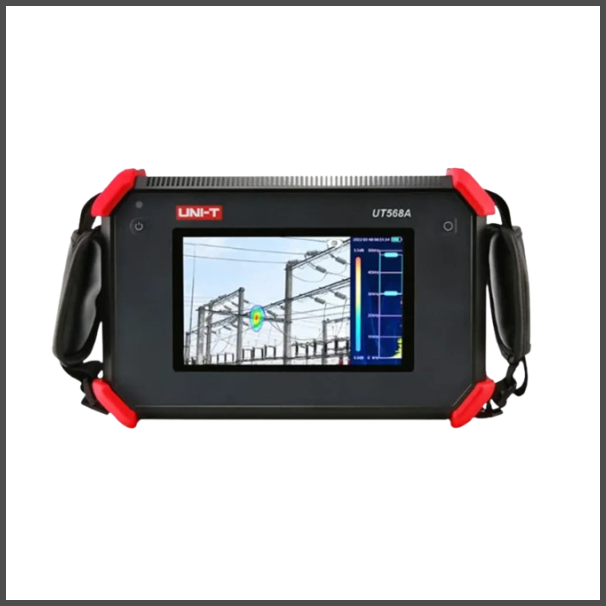

Acoustic Imager, UT568A
SKU: UT568A
Out of stock
Availability: Out of Stock
Short Description
- The UT568A Acoustic Imager is a professional acoustic imaging equipment used to detect and locate ultrasonic sound sources such as pressurized gas leaks, vacuum leaks, and probable partial discharge locations in electrical power systems.
- It employs a 128-channel MEMS digital microphone array and microphone-array beamforming technology to detect sound source distribution and overlay acoustic data onto real-time camera images.
-
The gadget has a 62° field of view and an acoustic picture refresh rate of more than 25 FPS, allowing users to swiftly find problems and leaks, even in noisy industrial environments.
Features:
- Global scanning and multi-point acoustic imaging.
- 128-channel MEMS digital microphone array.
- Wide 62° acoustic imaging field of view.
- Acoustic image refresh rate of over 25 FPS.
- Adjustable frequency range of 2 kHz–48 kHz.
- Sound pressure sensitivity range of 30 dB–120 dB.
- Real-time combination of acoustic source distribution and HD camera images.
- Designed for locating pressurised gas leaks and vacuum leaks.
- Helps identify potential partial discharge fault points in power systems.
- PRPD spectrum support for identifying partial discharge types.
- Interference elimination for improved detection.
- 7-inch capacitive touchscreen.
- Adjustable backlight suitable for viewing in sunlight.
- Photo and video recording.
- Supports external TF cards up to 64 GB.
- IP54 protection rating.
- USB Type-C interface with USB PD charging support.
Specifications:
- Microphone: 128-channel MEMS digital microphone.
- Frequency Band: 2 kHz–48 kHz.
- Acoustic Field of View: 62°.
- Acoustic Frame Rate: >25 FPS.
- Sound Pressure Sensitivity: 30 dB–120 dB.
- Display Resolution: 1024 × 600.
- Display Size: 7-inch LCD.
- Touchscreen: Capacitive.
- Backlight: Adjustable; sunlight readable.
- Camera Focus: 3.04 mm fixed.
- Camera Resolution: 8 MP.
- Battery: 6600 mAh @ 7.2 V.
- Battery Life: 4 hours.
- Charging Interface: USB Type-C; USB PD protocol.
- Battery Protection Charging Power: 29 W.
- Single-Battery Charging Power: 16 W.
- Internal Storage: 8 GB.
- External Storage: TF card, up to 64 GB.
- Image Format: JPG.
- Video Format: MP4.
- Operating Temperature: -10°C to +50°C
- Operating Humidity: 10%–95%, non-condensing.
- Storage Temperature: -20°C to +40°C.
- Charging Temperature: 10°C–45°C.
- Digital Export: USB Type-C (USB 3.0).
- Audio Interface: 3.5 mm jack.
- Dimensions: 272 × 174 × 42 mm.
- Protection Rating: IP54.
