Electrical Installation Testers, UT572, Digital Earth Tester
SKU: UT572
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Advanced Earth Resistance Meter,
• Earth Resistance 40KΩ,
• Soil Resistivity 40KΩ,
• Disturbance Voltage 50V (DC test or AC test),
• Disturbance Frequency 40Hz ~ 500Hz,
• 2/3/4 Wire Test,
• Earth Resistance Test Frequency,
• Soil Resistivity Test Distances,
• Earth Resistance RH and RS Test,
• Compensating Resistance RK Test,
• Data Hold,
• Data Storages 20,
• LCD Backlight,
• Autopower Off,
• Low Battery Indication,
• CAT III 600V,
• 4 Digit LCD Display
Buy currently uses Select Automation shop pricing and checkout.

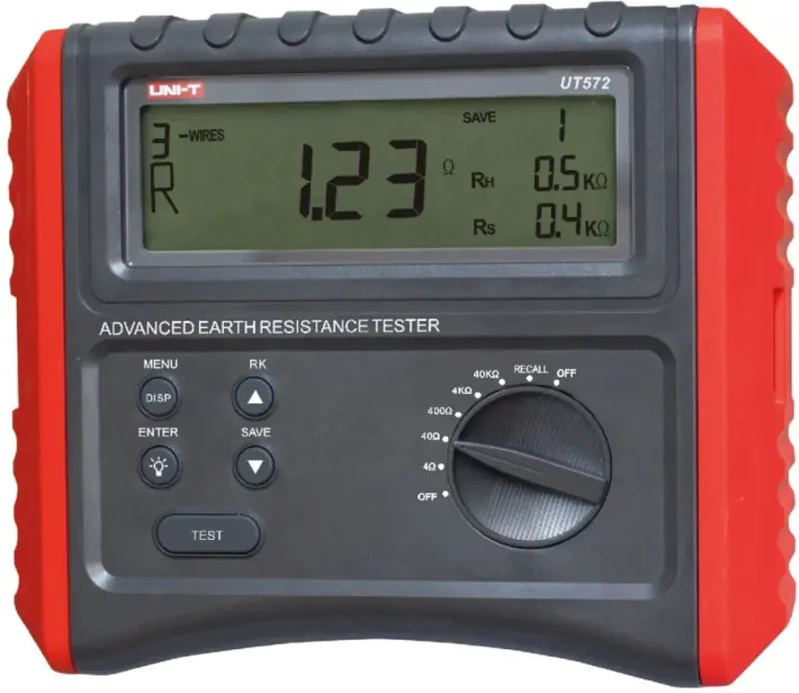

UT572 Advanced Earth Resistance Tester
• UT572 is for measuring earth resistance and soil resistivity.
• It can automatically check interface connection and detect interference voltage/frequency, with data hold and indication functions.
• It can perform 2/3/4-wire measurements for different on-site applications, such as power equipment wiring and lightning protection equipment.
