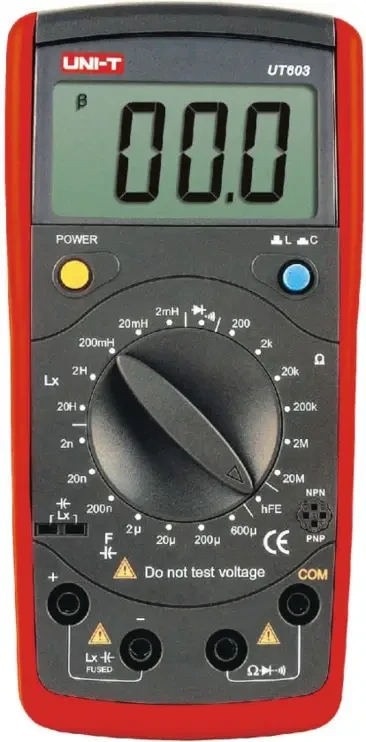

Component Testing Tools, UT603, Modern Inductance Capacitance Meters Testers LCR Meter Capacitors Ohmmeter w/hFE Test
SKU: UT603
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT603 Digital Inductance Capacitance Meter is a handheld component tester that can measure resistance, capacitance, and inductance, as well as diode and transistor properties.
It has manual range selection, a continuity beep, and a low battery indicator.
The UT603 is ideal for electrical component testing, circuit debugging, electronics repair and maintenance, and general laboratory applications.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Measures resistance.
Measures capacitance.
Measures inductance.
Tests diodes.
Tests transistor parameters.
Manual range selection.
Continuity buzzer.
Low-battery indication.
2000-count display.
Compact handheld design.
Powered by a 9 V battery.
Suitable for testing resistors, capacitors and inductors.
Suitable for electronic component testing and identification.
Suitable for electronics repair, maintenance and circuit troubleshooting.
Specifications:
Product Type: Digital Inductance / Capacitance Meter.
Resistance Measurement Range: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 2,000 MΩ.
Resistance Accuracy: ± (0.8% + 1).
Capacitance Measurement Range: 2 nF / 20 nF / 200 nF / 2 μF / 20 μF / 200 μF / 600 μF.
Capacitance Accuracy: ± (1% + 5).
Inductance Measurement Range: 2 mH / 20 mH / 200 mH / 2 H / 20 H.
Inductance Accuracy: ± (2% + 8).
Display Count: 2000.
Manual Range: Yes.
Diode Test: Yes.
Transistor Test: Yes.
Continuity Buzzer: Yes.
Low Battery Indication: Yes.
Data Hold: Not specified for UT603 in the current UNI-T UT600 Series specifications.
Power Supply: 9 V battery (6F22).
Display Size: 61 mm × 32 mm.
Product Colour: Red and grey.
Product Net Weight: 312 g.
Product Dimensions: 172 mm × 83 mm × 38 mm.
Standard Accessories: Battery, test leads with alligator clips, holster.
