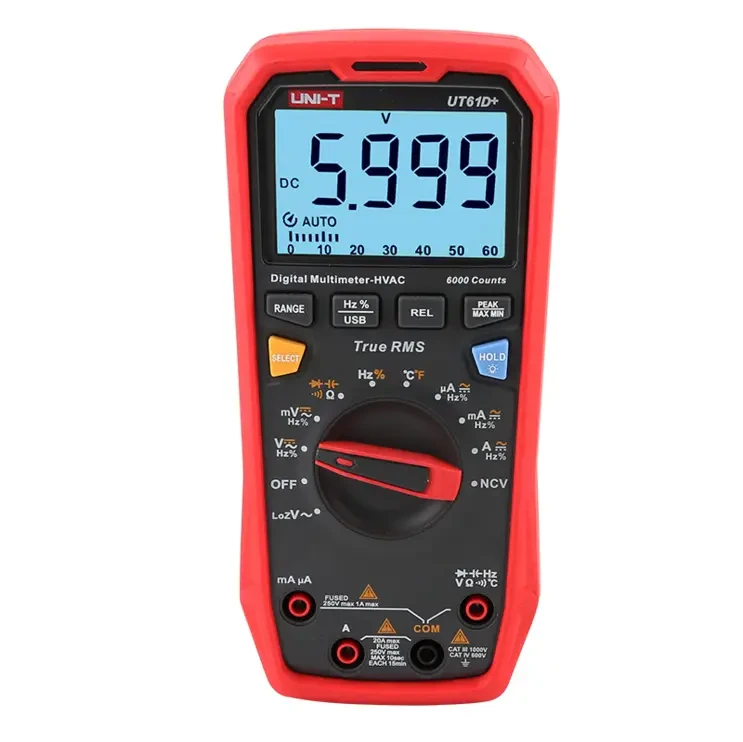

Digital Multimeters, UT61D+, 1000V True RMS Digital Multimeter
SKU: UT61D-plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Digital HVAC Multimeter True RMS,
• Auto Range,
• 1000V DC/AC, 20A AC/DC, ACV
• Frequency Response Sine Wave 40~1kHz,
• Non-Sine Wave 40~500Hz,
• LoZ V~ with 600V and 1000V Ranges,
• Resistance 40MΩ,
• Capacitance 4000µF,
• Frequency 10MHz,
• Temperature,
• NCV (Can Distinguish L & N Wires),
• Peak Value (Peak Hold),
• Duty Cycle,
• Diode,
• Auto Power Off,
• USB Transmission with Free Cable & Downloadable Software,
• Continuity Buzzer,
• Low Battery Indication,
• Data Hold,
• Relative Mode,
• MAX/MIN Mode,
• Backlight,
• 31 Section Analog Bar Graph,
• Input Protection,
• Gold Plated Test Leads,
• Blue Tooth Module (Optional),
• CAT III 1000V, CAT IV 600V;
• 6000 Count
Buy currently uses Select Automation shop pricing and checkout.
UT61+ Series 1000V True RMS Digital Multimeters
• UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+).
• It can measure up to 1000V AC/DC.
• Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
• Models in UT61+ series: UT61B+, UT61D+, UT61E+
