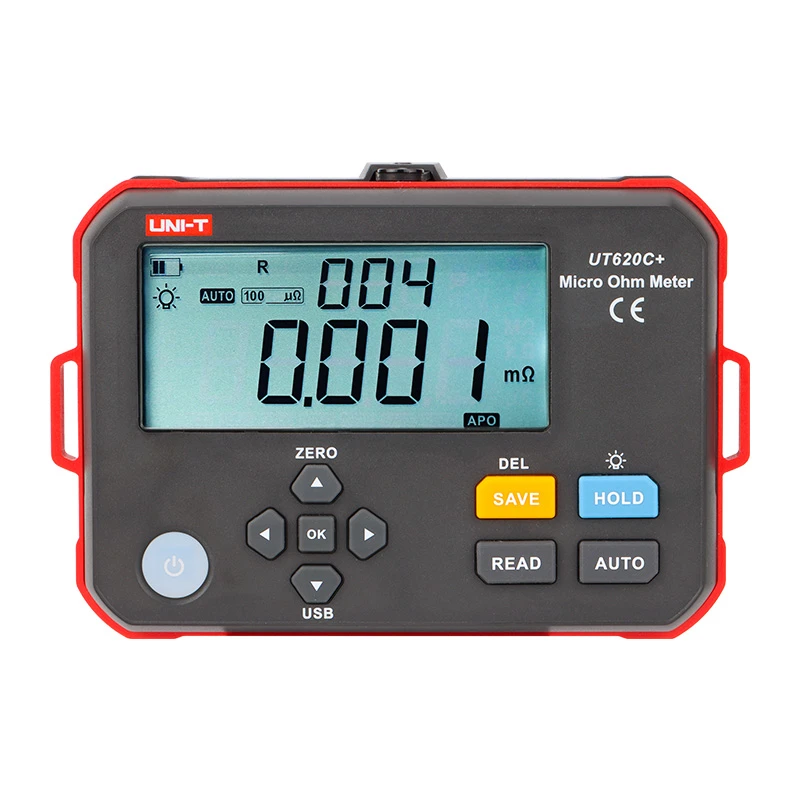

Digital Micro Ohm Meters, UT620C+
SKU: UT620C-plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT620C+ is a portable, high-precision micro-ohmmeter that can measure resistance values ranging from micro-ohms to mega-ohms.
To precisely measure the resistance of wires, switches, connectors, contactors, fuses, coils, transformer windings, metal riveted connections, and other low-resistance components, it employs a four-wire measurement technique.
The UT620C+ is ideal for testing and maintaining large electrical equipment, motors, stators, hybrid and electric vehicles, telecommunications, power distribution systems, petrochemical installations, and industrial grounding systems because it has a resolution of up to 1 μΩ, a measurement current of up to 1 A, 500-set data storage, and a rechargeable lithium battery.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Measures resistance from 0.001 m Ω to 300.0 k Ω.
Micro-ohm level resistance measurement.
Resolution up to 1 μΩ.
Accuracy up to ±0.1% FS.
Four-wire measurement method for accurate low-resistance measurements.
Measurement current up to 1 A.
Measures resistance of wires and cables.
Suitable for switch and connector contact resistance testing.
Suitable for contactor and fuse resistance measurement.
Suitable for coil and transformer winding resistance measurement.
Suitable for metal riveting and connection resistance testing.
500 sets of measurement data storage.
Large LCD display.
USB Type-C interface.
USB data transfer capability.
Rechargeable lithium battery.
Automatic power-off function.
Long standby time.
Backlight function.
Low-battery indication.
Input protection up to 36 V AC/DC.
Compact and portable design.
Suitable for testing and maintenance of large electrical equipment.
Suitable for motor and stator winding resistance testing.
Suitable for hybrid and electric vehicle applications.
Suitable for telecommunications and power distribution systems.
Suitable for petrochemical and industrial applications.
Suitable for grounding system resistance testing.
Specifications:
Resistance Range: 0.001 m Ω–300.0 k Ω.
Measurement Method: Four-wire method.
Test Current: ≤1 A.
Open Circuit Voltage: ≤4.2 V.
Input Protection: ≤36 V AC/DC.
Measurement Power Consumption: ≤8 W.
Measurement Speed: 2 measurements/s.
Automatic Power-Off: 15 minutes without operation.
Data Storage: 500 sets.
Display Type: Segment LCD.
USB Interface: Type-C.
Backlight: Yes.
Low-Battery Indication: Yes.
IP Rating: IP54.
Power Supply: DC 3.7 V 3200 mAh rechargeable lithium battery.
Dimensions: 161 × 117 × 68 mm.
