Benchtop LCR Meters, UT622E: Handheld LCR Meters (100kHz, 0.1%, DCR)
SKU: UT622E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

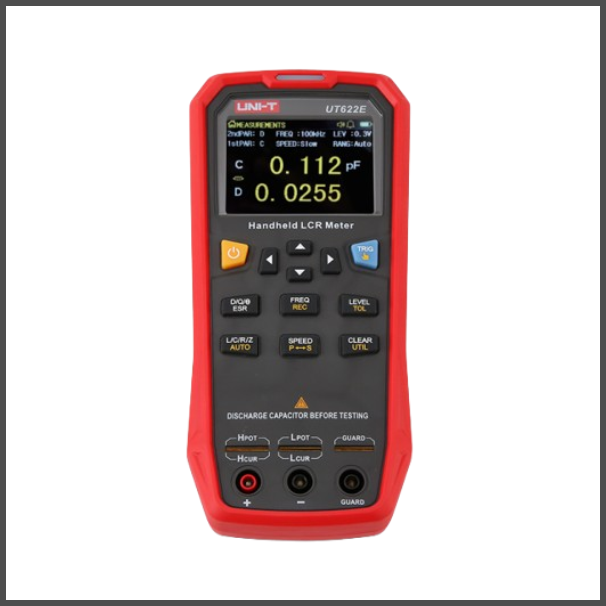

The UT622E Handheld LCR Meter is a high-precision component tester for measuring and screening inductors, capacitors, and resistors in laboratories, production lines, maintenance areas, and electronic testing applications.
It supports test frequencies of up to 100 kHz and includes DCR measurement, which allows users to determine the direct-current resistance of electrical components like coils and transformers.
The instrument includes a 2.8-inch TFT LCD, automatic LCR identification, tolerance sorting, recording capabilities, and Mini-USB interface.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Maximum test frequency of 100 kHz.
Basic accuracy of 0.1%.
5-digit display.
Maximum measurement rate of 20 readings/s.
DCR (Direct Current Resistance) measurement.
Measures:
Inductance (L).
Capacitance (C).
Resistance (R).
Impedance (Z).
ESR.
Dissipation factor (D).
Quality factor (Q).
Phase angle (θ).
Direct-current resistance (DCR).
Auto LCR component identification.
Test frequencies of 100 Hz, 120 Hz, 1 kHz, 10 kHz and 100 kHz.
Selectable test signal levels of 0.1 V, 0.3 V and 1 V.
100 Ω output impedance.
Three-terminal and five-terminal test ports.
Supports Kelvin test lead expansion.
Fast, medium and slow measurement speeds.
Automatic and hold ranging.
Series and parallel equivalent circuit modes.
Open-circuit and short-circuit correction.
Tolerance mode for component sorting.
Tolerance range of 1%–20%.
PASS/FAIL comparison and LED indication.
Recording mode for average, maximum, minimum and number of readings.
Mini-USB connectivity.
Rechargeable lithium-polymer battery.
2.8-inch TFT LCD.
USB power adapter support.
Specifications:
Product Type: Handheld LCR Meter.
Maximum Test Frequency: 100 kHz.
Basic Accuracy: 0.1%.
Display Count: 5-digit.
Maximum Test Rate: 20 readings/s.
DCR Measurement: Yes.
Inductance (L): 0.001 µH–9999.9 H.
Capacitance (C): 0.001 pF–99.999 mF.
Impedance / Resistance (Z/R): 0.0001 Ω–99.999 MΩ.
ESR: 0.01 mΩ–999.99 Ω.
Dissipation Factor (D): 0.0001–9.9999.
Quality Factor (Q): 0.0001–99999.
Phase Angle (θ): -179.9° to 179.9°.
Test Frequencies: 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz.
Test Signal Levels: 0.1 V / 0.3 V / 1 V.
Output Impedance: 100 Ω.
Primary Parameters: L / C / R / Z.
Secondary Parameters: D / Q / θ / ESR.
Auto LCR Identification: Yes.
Test Ports: 3-terminal / 5-terminal.
Kelvin Test Lead Expansion: Yes.
Test Speeds: Fast / Medium / Slow.
Fast Test Rate: 20 readings/s.
Medium Test Rate: 5 readings/s.
Slow Test Rate: 2 readings/s.
Ranging: Auto / Hold.
Equivalent Circuit: Series / Parallel.
Open/Short Correction: Yes.
Tolerance Range: 1%–20%.
PASS/FAIL Sorting: Yes.
Recording Mode: Average / Maximum / Minimum / Number of readings.
Connectivity: Mini-USB.
Display: 2.8-inch TFT LCD, 320 × 240 pixels.
Battery: 3.7 V, 1800 mAh rechargeable lithium-polymer.
Power Supply: Lithium-polymer battery / USB power adapter.
