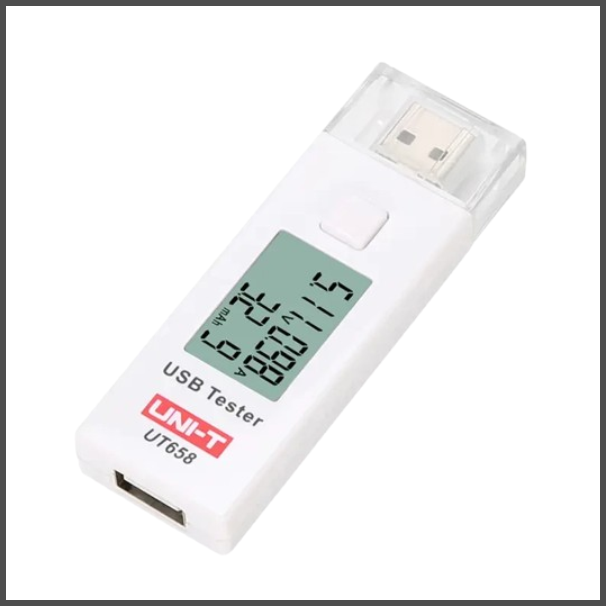

Cable Testers, UT658, USB Current Meter Capacity Voltage Tester
SKU: UT658
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT658B USB Current Meter and Capacity Tester is a portable USB testing tool that monitors the operation of USB charging devices and power sources.
It detects DC voltage and charging current, as well as calculating and storing capacity delivered when charging.
Its tiny size and simple operation make it ideal for electronics workers, engineers, manufacturing verification, and DIY projects.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Measures USB charging voltage.
Measures USB charging current.
Measures battery/charging capacity.
Displays voltage, current and capacity simultaneously.
Continuous capacity memory for charger capacity testing.
Stores up to 10 sets of capacity data.
LCD display.
Warning indication.
Simple button operation.
Compact and lightweight design.
10 cm cable.
Suitable for USB chargers and portable power sources.
Specifications:
Product Type: USB Tester / USB Current Meter / Capacity Tester.
Input Voltage Range: 3–9 V DC.
Voltage Resolution: 0.01 V.
Voltage Monitoring Accuracy: ± (1% + 5).
Current Monitoring Range: 0–3.5 A.
Current Resolution: 0.01 A.
Current Monitoring Accuracy: ± (1% ± 5).
Capacity Measurement: 0–9999 mAh
Capacity Data Storage: 10 sets.
Display: LCD.
Warning Function: Yes.
Button Control: Yes.
Cable Length: 10 cm.
Operating Temperature: -10°C–40°C.
Storage Temperature: -10°C–50°C.
Relative Humidity: <75% RH.
Dimensions: 72 × 29 × 12 mm.
