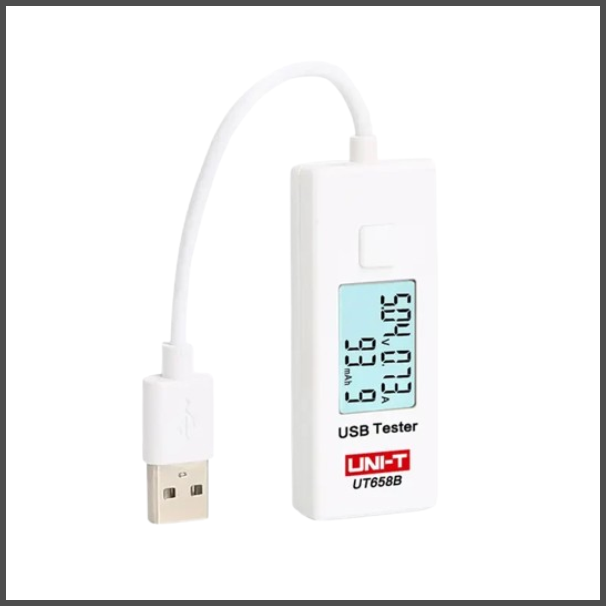

Cable Testers, UT658B, Digital USB Testers Testable Stable Input Voltage Range From 3V to 9.0V with LCD
SKU: UT658B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT658B Digital USB Tester is a portable tool for evaluating the performance of USB chargers and USB-powered devices.
It measures USB charging voltage and current in real time and keeps track of the total battery capacity delivered during charging.
Its small size makes it ideal for electronics testing, manufacturing verification, engineering applications, troubleshooting, and DIY projects.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Stable 3 V–9 V input voltage range.
Measures USB charging voltage.
Measures charging current.
Measures battery/charger capacity.
Voltage, current and capacity displayed simultaneously.
Continuous memory for charger capacity testing.
Stores up to 10 sets of capacity data.
LCD display.
Warning function.
Button operation.
Compact and portable design.
10 cm cable.
Suitable for USB chargers and portable power sources.
Specifications:
Product Type: Digital USB Tester.
Input Voltage Range: 3 V–9 V.
Voltage Resolution: 0.01 V.
Voltage Monitoring Accuracy: ± (1% + 5).
Current Monitoring Range: 0 A–3.5 A.
Current Resolution: 0.01 A.
Current Monitoring Accuracy: ± (1% ± 5).
Capacity Measurement: 0–9999 mAh.
Capacity Data Storage: 10 sets.
Display: LCD.
Warning Function: Yes.
Button Operation: Yes.
Cable Length: 10 cm.
Working Temperature: -10°C–40°C.
Storage Temperature: -10°C–50°C.
Relative Humidity: <75% RH.
Dimensions: 72 × 29 × 12 mm.
