Cable Testers, UT659D, LED Tester Single LED Lamp Bead Test 85V-265V Power Intelligent Adjustment Voltage Current Continuity Test
SKU: UT659D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

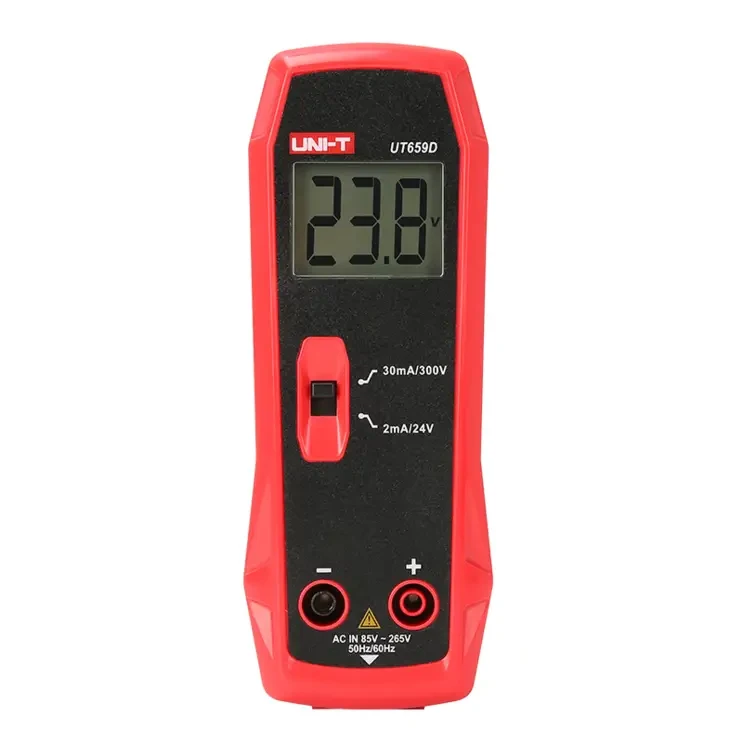

The UT659D LED Tester is a small electrical test equipment for testing individual LED lamp beads and LED components.
It offers output voltage ranges of 24 V and 300 V, as well as output current ranges of 2 mA and 30 mA, with intelligent voltage and current control.
The tester can automatically detect LED polarity while testing and is appropriate for LED inspection, maintenance, and repair applications.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Designed for single LED lamp bead testing.
85 V–265 V AC input range at 50/60 Hz.
Intelligent adjustment of test voltage and current.
Supports 24 V and 300 V output voltage.
Supports 2 mA and 30 mA output current.
Automatic LED polarity identification.
Output voltage automatically adjusts according to the LED's forward voltage drop.
LED test values displayed on LCD.
Continuity testing function.
Continuity test output voltage: 5 V DC.
Continuity resistance measurement: 0–99.9 Ω.
High-impedance open-circuit safety protection.
Constant-on backlight function.
CAT II 300 V safety category.
1 m drop protection.
Specifications:
Product Type: LED Tester.
Primary Application: Single LED Lamp Bead Testing.
Input Voltage: 85–265 V AC.
Input Frequency: 50/60 Hz.
Output Voltage: 24 V / 300 V.
Output Current: 2 mA / 30 Ma.
LED Polarity Identification: Automatic.
Voltage Adjustment: Intelligent / Adaptive.
Current Adjustment: Intelligent.
Continuity Test Voltage: 5 V DC.
Continuity Resistance Range: 0–99.9 Ω.
Display: LCD.
Backlight: Constant On.
Safety Protection: High-impedance open circuit.
Operating Temperature: 0°C–40°C.
Storage Temperature: -10°C–50°C.
Relative Humidity: <80% RH.
Operating Altitude: ≤2000 m.
Drop Protection: 1 m.
Safety Category: CAT II 300 V.
Display Size: 60 × 35 mm.
Dimensions: 150 × 56 × 42 mm.
