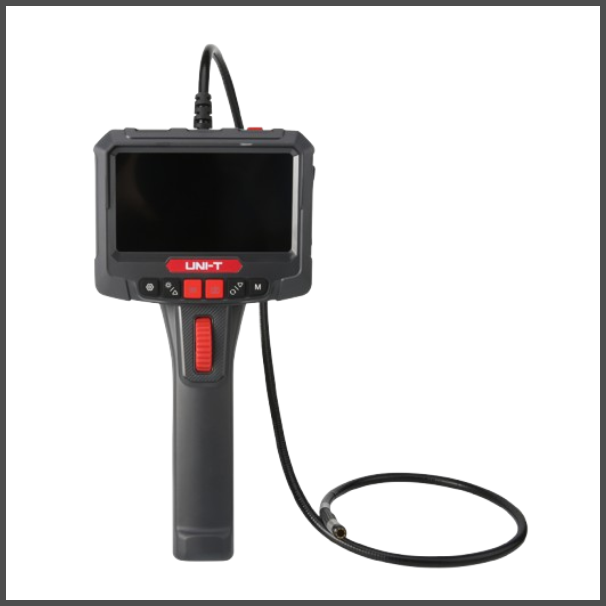

Borescopes, UT663B, 360° Rotatable Industrial Borescope
SKU: UT663B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT663B 360° Rotatable Industrial Borescope is a portable inspection camera used to examine places that are difficult or impossible to see with the naked eye.
It has a 5-inch LCD, an 8 mm IP67-rated camera, 1920 x 1080 photo and video resolution, and a probe that can rotate 180° in two directions.
The machine has adjustable LED illumination, photo and video recording, playback, audio recording, and a 32 GB TF card for storing inspection data.
The borescope comes with 1 m, 2 m, or 3 m probe lengths, depending on the model.
Buy currently uses Select Automation shop pricing and checkout.
Features:
5-inch display screen.
180° bidirectional probe rotation.
360° rotatable industrial borescope design.
8 mm camera lens diameter.
IP67-rated camera probe.
1920 × 1080 JPG image resolution.
1920 × 1080 AVI video resolution.
1000K pixel CMOS image sensor.
8 adjustable LED lights with 4 brightness settings.
Photo capturing.
Video recording.
Playback function.
Image rotation.
Audio recording.
High-temperature warning and power-off protection.
32 GB TF card included, supporting up to 64 GB.
Large-capacity rechargeable lithium-ion battery.
4 hours battery life.
Specifications:
Product Type: 360° Rotatable Industrial Borescope.
Display Size: 5.0 inches.
System Languages: English, Simplified Chinese, Traditional Chinese, Japanese, German, Spanish, French, Italian, Korean.
Image Resolution: JPG: 1920 × 1080.
Video Resolution: AVI: 1920 × 1080.
Image Sensor: CMOS.
Sensor Resolution: 1000K pixels.
Lens Diameter: 8 mm.
Field of View (FOV): 70°.
Depth of Field (DOF): 20–100 mm.
Probe Rotation: 180° bidirectional.
Probe Material: Metal and hard hose.
Probe Length: 1 m / 2 m / 3 m.
LED Lighting: 8 adjustable LEDs, 4 brightness settings.
Camera IP Rating: IP67.
Storage: Standard 32 GB TF card; maximum 64 GB.
Battery: 3.7 V / 3000 mAh Li-ion.
Battery Life: 4 hours.
Lens Temperature: 0°C–80°C.
Operating Temperature: 0°C–45°C.
Operating Humidity: <90% RH, non-condensing.
